Relation Database Service (RDS) Creation Step By Step Process
MySQL Workbench
Example:
CREATE TABLE EMP(
E_No INT NOT NULL AUTO_INCREMENT,
E_Name VARCHAR(50) NOT NULL,
E_Department VARCHAR(40) NOT NULL,
E_Salary INT NOT NULL,
PRIMARY KEY ( E_No )
);
-------------------------------------------
INSERT INTO EMP
(E_No, E_Name, E_Department, E_Salary)
VALUES
(001, "John Poul", "Graphic", 6000);
Amazon Relational Database Service (Amazon RDS) is a managed service
that makes it easy to set up, operate, and scale a relational database in the cloud. It provides cost-efficient and
resizable capacity, while managing time-consuming database administration
tasks, freeing you up to focus on your applications and business.
Amazon RDS gives you access to the capabilities of a familiar MySQL,
MariaDB, Oracle, SQL Server, or PostgreSQL database. This means that the code,
applications, and tools you already use today with your existing databases
should work seamlessly with Amazon RDS. Amazon RDS automatically patches the
database software and backs up your database, storing the backups for a
user-defined retention period. You benefit from the flexibility of being able
to scale the compute resources or storage capacity associated with your
relational database instance via a single API call or few clicks of the AWS Management Console. In addition,
Amazon RDS makes it easy to use replication to enhance database availability,
improve data durability, or scale beyond the capacity constraints of a single
database instance for read-heavy database workloads. As with all Amazon Web
Services, there are no up-front investments required, and you pay only for the
resources you use.
You can think of a DB Instance as a database environment in the cloud
with the compute and storage resources you specify. You can create and delete
DB Instances, define/refine infrastructure attributes of your DB Instance(s),
and control access and security via the AWS Management
Console, Amazon RDS APIs, and Command Line Tools. You can
run one or more DB
Instances, and each DB Instance can support one or more databases
or database schemas, depending on engine type.
Amazon RDS manages the work involved in setting up a relational
database: from provisioning the infrastructure capacity you request to
installing the database software. Once your database is running on its own DB
Instance, Amazon RDS automates common administrative tasks, such as performing
backups and patching the database software that powers your DB Instance. For
optional Multi-AZ
deployments, Amazon RDS also manages synchronous
data replication across Availability Zones and automatic failover.
Since Amazon RDS provides native database access, you interact with the
relational database software as you normally would. This means you're still
responsible for managing the database settings that are specific to your
application. You'll need to build the relational schema that best fits your use
case and are responsible for any performance tuning to optimize your database
for your application’s workflow.
Amazon Web Services provides a number of database alternatives for
developers. Amazon RDS enables you to run a fully featured relational database
while offloading database administration; Amazon DynamoDB is a fully managed NoSQL database service that offers fast and
predictable performance with seamless scalability; and using one of our many
relational database AMIs on Amazon EC2 allows you to operate your own relational database in the cloud. There
are important differences between these alternatives that may make one more appropriate
for your use case. See Running Databases on AWS for guidance on which solution is best for you.
To sign up for Amazon RDS, you must have an Amazon Web Services account. Create an account if you do not already have one. After you are signed up, please refer to
the Amazon RDS
documentation, which includes our Getting Started Guide.

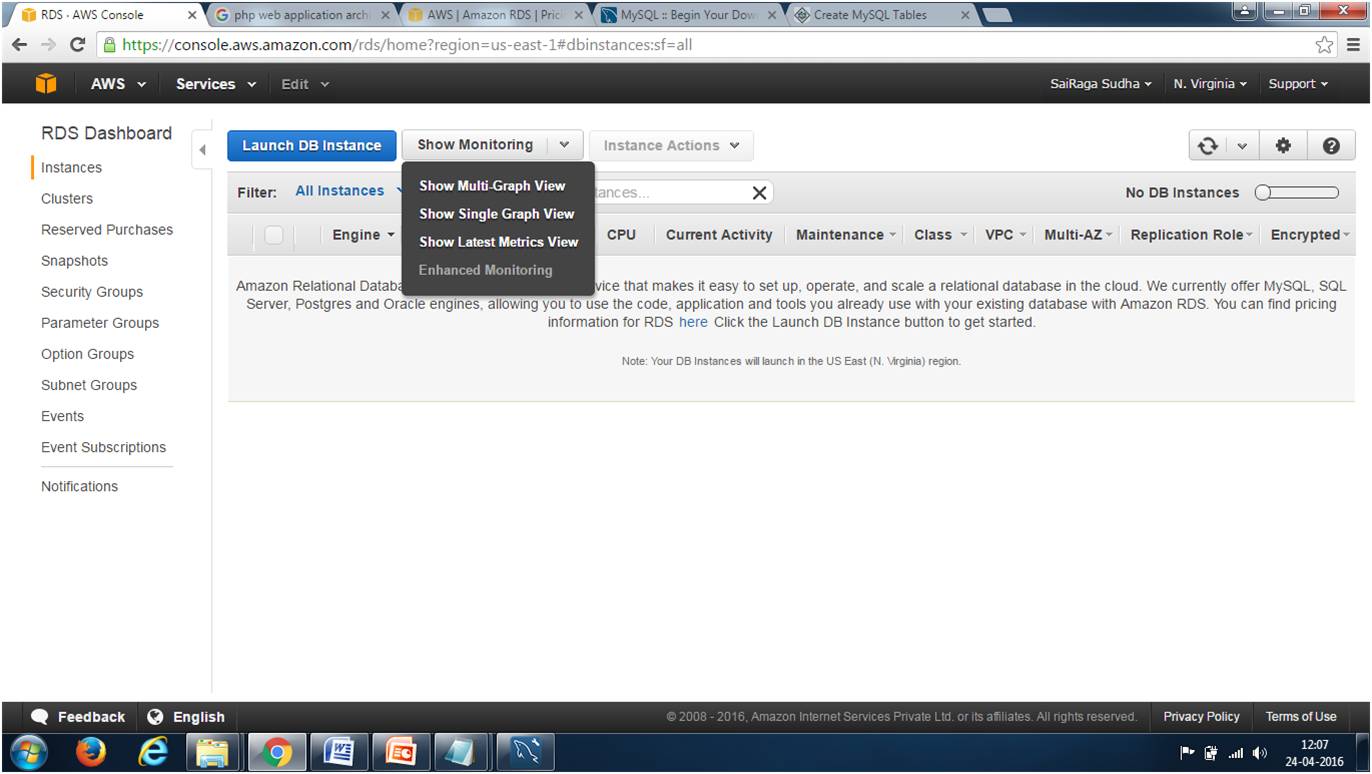

DB Instances are simple to create, using either the AWS Management Console, Amazon RDS APIs, or Command Line Tools. To launch a DB Instance using the AWS Management Console, click
"RDS," then the "Launch DB Instance" button on the
"Instances" tab. From there, you can specify the parameters for your
DB instance including DB engine and version, license model, instance type,
storage type and amount, and master user credentials.
You also have the ability to change your DB Instance’s backup retention
policy, preferred backup window, and scheduled
maintenance window. Alternatively, you can create your
DB Instance using the CreateDBInstance API or rds-create-db-instance command.
Once your DB Instance is available, you can retrieve its endpoint via
the DB Instance description in the AWS Management Console or DescribeDBInstance API. Using this endpoint you can construct the
connection string required to connect directly with your DB Instance using your
favorite database tool or programming language. In order to allow network
requests to your running DB Instance, you will need to authorize access. For a detailed explanation of how to construct your connection string
and get started, please refer to ourGetting Started Guide.
By default, customers are allowed to have up to a total of 40 Amazon RDS
DB instances. Of those 40, up to 10 can be Oracle or SQL Server DB Instances
under the "License
Included" model. All 40 can be used for Amazon Aurora, MySQL, MariaDB, Oracle, SQL
Server, or PostgreSQL under the "BYOL" model. If your application
requires more DB Instances, you can request additional DB Instances via thisrequest form.
·
RDS for Amazon Aurora: No limit
imposed by software
·
RDS for MySQL: No limit imposed by
software
·
RDS for MariaDB: No limit imposed by
software
·
RDS for Oracle: 1 database per
instance; no limit on number of schemas per database imposed by software
·
RDS for SQL Server: 30 databases per
instance
·
RDS for PostgreSQL: No limit imposed
by software
There are a number of simple ways to import data into Amazon RDS, such
as with the mysqldump or mysqlimport utilities for MySQL; Data Pump,
import/export or SQL Loader for Oracle; Import/Export wizard or Bulk Copy
Program (BCP) for SQL Server; or pg_dump for PostgreSQL. For more information
on data import and export, please refer to the Data Import Guide for MySQL or the Data Import Guide for Oracle or the Data Import Guide for SQL Server or the Data Import Guide for PostgreSQL.
Amazon RDS supports Amazon Aurora, MySQL, MariaDB, Oracle, SQL Server,
and PostgreSQL database engines.
Amazon RDS for MySQL currently supports MySQL 5.5, 5.6 and 5.7
(Community Edition) with InnoDB as the default database storage engine. Amazon
RDS for MariaDB currently supports MariaDB 10.0 and 10.1. Amazon RDS for Oracle
currently supports Oracle Database 11gR2 and 12c. Amazon RDS for SQL Server
currently supports 2008 R2, SQL Server 2012 (SP2) and SQL Server 2014. Amazon
RDS for PostgreSQL currently supports PostgreSQL 9.3, 9.4 and 9.5.
If you are using MySQL, you can use Amazon RDS MySQL DB
Engine Version Management for optional control over the MySQL minor version of your DB Instance.
If you are using Oracle, you can use Amazon RDS Oracle
DB Engine Version Management for optional control over the patch level of your DB Instance.
If you are using SQL Server, you can use Amazon RDS SQL Server DB Engine Version Management for optional control over the patch level of your DB Instance.
The Amazon RDS maintenance window is your opportunity to control when DB
Instance modifications (such as scaling DB Instance class) and software
patching occur, in the event they are requested or required. If a maintenance
event is scheduled for a given week, it will be initiated and completed at some
point during the maintenance window you identify. Maintenance windows are 30
minutes in duration.
The only maintenance events that require Amazon RDS to take your DB
Instance offline are scale compute operations (which generally take only a few
minutes from start-to-finish) or required software patching. Required patching
is automatically scheduled only for patches that are security and durability
related. Such patching occurs infrequently (typically once every few months)
and should seldom require more than a fraction of your maintenance window. If you
do not specify a preferred weekly maintenance window when creating your DB
Instance, a 30 minute default value is assigned. If you wish to modify when
maintenance is performed on your behalf, you can do so by modifying your DB
Instance in the AWS Management
Console or by using the
ModifyDBInstance API. Each of your DB Instances can have different preferred
maintenance windows, if you so choose.
Running your DB Instance as a Multi-AZ deployment can further reduce the impact of a maintenance event. Please refer to
the Amazon RDS User Guide for more information.
For more information on using the APIs or command line interface to
specify your maintenance window, please refer to the Amazon RDS Developer Guide. For more
information on Multi-AZ mode deployments, click here.
Q:
Does Amazon RDS provide guidelines for support of new database engine versions,
and for deprecating database engine versions that are currently supported?
This statement applies to Amazon RDS for Amazon Aurora, MySQL, MariaDB,
Oracle, SQL Server, and PostgreSQL.
Over time, we plan to support additional database versions, both minor
and major, for Amazon RDS's engines. The number of new version releases
supported in a given year will vary based on the frequency and content of
releases and patches from the engine’s vendor or core team, and the outcome of
a thorough vetting of these releases and patches by our database engineering
team. However, as a general guidance, we aim to support new engine versions
within 3-5 months of their general availability.
Here is a general statement of Amazon RDS’s deprecation policy:
·
We intend to support major version
releases (e.g., MySQL 5.6) for at least 3 years after they are initially
supported by Amazon RDS.
·
We intend to support minor versions
(e.g., MySQL 5.6.21) for at least 1 year after they are initially supported by
Amazon RDS.
·
From time to time, we will deprecate
major or minor versions. We expect to provide a three-month grace period after
the announcement of a deprecation for you to initiate an upgrade to a supported
version. At the end of this grace period, an automatic upgrade will be applied
to any un-upgraded instances during their scheduled maintenance windows.
·
While we strive to meet these
guidelines, in some cases we may deprecate specific major or minor versions
sooner, such as when there are security issues.
If you are using MySQL, you can access the MySQL slow query logs for
your database to determine if there are slow-running SQL queries and, if so,
the performance characteristics of each. You could set the
"slow_query_log" DB Parameter and query the mysql.slow_log table to
review the slow-running SQL queries. Please refer to the Amazon RDS User Guide to learn more.
If you are using Oracle, you can use the Oracle trace file data to
identify slow queries. For more information on accessing trace file data,
please refer to Amazon RDS User Guide.
If you are using SQL Server, you can use the client side SQL Server
traces to identify slow queries. For information on accessing server side trace
file data, please refer to Amazon RDS User Guide.
You may also want to check the CPU utilization metrics for your DB
Instance via Amazon CloudWatch. High levels of CPU utilization can reduce query performance and in
this case you may want to consider scaling your DB Instance class. For more
information on monitoring your CPU utilization, read the Amazon RDS Monitoring Guide.
The pricing for
each database engine of RDS varies because our costs are different for each.
These costs include many operational components beyond software licensing. As
we have demonstrated in the past with significant number of price cuts so far,
we work hard to reduce costs and pass on those savings to our customers. We look
forward to doing the same for our newer engines such as PostgreSQL in the
future.
You pay only for what you use, and there are no minimum or setup fees.
You are billed based on:
·
DB Instance hours – Based on the class (e.g. Standard
Small, Large, Extra Large) of the DB Instance consumed. Partial DB Instance
hours consumed are billed as full hours.
·
Storage (per GB per month) – Storage capacity
you have provisioned to your DB Instance. If you scale your provisioned storage
capacity within the month, your bill will be pro-rated.
·
I/O requests per month – Total number of storage I/O requests
you have (for Amazon RDS
Magnetic Storage only)
·
Provisioned IOPS per month – Provisioned IOPS
rate, regardless of IOPS consumed (for Amazon RDS Provisioned IOPS (SSD) Storage only)
·
Backup Storage – Backup storage is the storage
associated with your automated database backups and any active database
snapshots you have taken. Increasing your backup retention period or taking
additional database snapshots increases the backup storage consumed by your
database. Amazon RDS provides backup storage up to 100% of your provisioned
database storage at no additional charge. For example, if you have 10GB-months
of provisioned database storage, we will provide up to 10GB-months of backup
storage at no additional charge. Based upon our experience as database
administrators, the vast majority of databases require less raw storage for a
backup than for the primary data set, meaning that most customers will never
pay for backup storage. Backup storage is only free for active DB Instances.
·
Data transfer – Internet data transfer in and out of
your DB Instance.
For Amazon RDS pricing information, please visit the pricing section on
the Amazon RDS product page.
Billing commences for a DB Instance as soon as the DB Instance is
available. Billing continues until the DB Instance terminates, which would
occur upon deletion or in the event of instance failure.
DB Instance hours are billed for each hour your DB Instance is running
in an available state. If you no longer wish to be charged for your DB
Instance, you must terminate it to avoid being billed for additional
instance-hours. Partial DB Instance hours consumed are billed as full hours.
The storage provisioned to your DB Instance for your primary data is
located within a single Availability Zone. When your database is backed up, the
backup data (including transactions logs) is geo-redundantly replicated across
multiple Availability Zones to provide even greater levels of data durability.
The price for backup storage beyond your free allocation reflects this extra
replication that occurs to maximize the durability of your critical backups.
If you specify that your DB Instance should be a Multi-AZ deployment,
you will be billed according to the Multi-AZ pricing posted on theAmazon RDS pricing page. Multi-AZ billing is based on:
·
Multi-AZ DB Instance Hours – Based on the class
(e.g. Small, Large, Extra Large) of the DB Instance consumed. As with standard
deployments in a single Availability Zone, partial DB Instance hours consumed
are billed as full hours. If you convert your DB Instance deployment between standard
and Multi-AZ within a given hour, you will be charged both applicable rates for
that hour.
·
Provisioned storage (for Multi-AZ DB Instance) – If you convert your deployment between standard and Multi-AZ within a
given hour, you will be charged the higher of the applicable storage rates for
that hour.
·
I/O requests per month – Total number of storage I/O requests
you have. Multi-AZ deployments consume a larger volume of I/O requests than
standard DB Instance deployments, depending on your database write/read ratio.
Write I/O usage associated with database updates will double as Amazon RDS
synchronously replicates your data to the standby DB instance. Read I/O usage
will remain the same.
·
Backup Storage – Your backup storage usage will not
change whether your DB Instance is a standard or Multi-AZ deployment. Backups
will simply be taken from your standby to avoid I/O suspension on the DB
Instance primary.
·
Data transfer – You are not charged for the data
transfer incurred in replicating data between your primary and standby.
Except as otherwise
noted, our prices are exclusive of applicable taxes and duties, including VAT
and applicable sales tax. For customers with a Japanese billing address, use of
the Asia Pacific (Tokyo) Region is subject to Japanese Consumption Tax. Learn more.
Q: What does the AWS Free Tier for Amazon
RDS offer?
The AWS Free Tier for Amazon RDS offer provides free use of Single-AZ
Micro DB instances running MySQL, MariaDB, PostgreSQL, Oracle
("Bring-Your-Own-License (BYOL)" licensing model) and SQL Server
Express Edition. The free usage tier is capped at 750 instance hours per month.
Customers also receive 20 GB of database storage, 10 million I/Os and 20 GB of
backup storage for free per month.
Q: For what time period will the AWS Free
Tier for Amazon RDS be available to me?
New AWS accounts receive 12 months of AWS Free Tier access. Please see
the AWS Free Tier FAQs for more information.
Q: Can I run more than one DB instance
under the AWS Free Usage Tier for Amazon RDS?
Yes. You can run more than one Single-AZ Micro DB instance
simultaneously and be eligible for usage counted under the AWS Free Tier for
Amazon RDS. However, any use exceeding 750 instance hours, across all Amazon
RDS Single-AZ Micro DB instances, across all eligible database engines and
regions, will be billed at standard Amazon RDS prices.
For example: if you run two Single-AZ Micro DB instances for 400 hours
each in a single month, you will accumulate 800 instance hours of usage, of
which 750 hours will be free. You will be billed for the remaining 50 hours at
the standard Amazon RDS price.
Q: Do I have access to 750 instance hours
each of the MySQL, MariaDB, PostgreSQL, Oracle and SQL Server Micro DB
instances under the AWS Free Tier?
No. A customer with access to the AWS Free Tier can use up to 750
instance hours of Micro instances running either MySQL, PostgreSQL, Oracle or SQL
Server Express Edition. Any use exceeding 750 instance hours, across all Amazon
RDS Single-AZ Micro DB instances, across all eligible database engines and
regions, will be billed at standard Amazon RDS prices.
Q: Is the AWS Free Tier for Amazon RDS
available in all AWS Regions?
The AWS Free Tier for Amazon RDS is available in all AWS Regions except
GovCloud (US).
Q: How am I billed when my instance-hour
usage exceeds the Free Tier benefit?
You are billed at
standard Amazon RDS prices for instance hours beyond what the Free Tier
provides. See the Amazon RDS pricing
pagefor details.
Reserved Instances give you the option to reserve capacity within a
datacenter and in turn receive a significant discount on the hourly charge for
instances that are covered by the reservation. There are three RI payment
options -- No Upfront, Partial Upfront, All Upfront -- which enable you
to balance the amount you pay upfront with your effective hourly price.
Q: How are Reserved Instances different
from On-Demand DB Instances?
Functionally, Reserved Instances and On-Demand DB Instances are exactly
the same. The only difference is how your DB Instance(s) are billed: With
Reserved Instances, you reserve capacity for a machine in a datacenter and in
return receive a lower effective hourly usage rate (compared with On-Demand DB
Instances) for the duration of the term.
You can use the "Purchase Reserved DB Instance" option in the
AWS Management Console. Alternatively, you can use the API tools: List the
reservations available for purchase with the DescribeReservedDBInstancesOfferings
API method and then purchase a DB Instance reservation by calling the
PurchaseReservedDBInstancesOffering method.
Creating a Reserved Instance is no different than launching an On-Demand
Instance. You simply use the rds-create-db-instance command, the
CreateDBInstance API, or select the Launch DB Instance option from the AWS
Management Console, specifying the DB Instance class and Region for which you
made the reservation. So long as your reservation purchase was successful,
Amazon RDS will apply the reduced hourly rate, for which you are eligible, to
the new DB Instance.
Yes. Reserved Instances are purchased for the Region rather than for the
Availability Zone. This means that even if capacity is limited in one
Availability Zone, reservations can still be purchased in that Region and used
in a different Availability Zone within that Region.
You can purchase up to 40 Reserved DB Instances. If you wish to run more
than 40 DB Instances, please complete the Amazon RDS DB Instance request form.
Simply purchase a DB Instance reservation with the same DB Instance
class, DB Engine and License Model within the same Region as the DB Instance
you are currently running and would like to reserve. If the reservation purchase
is successful, Amazon RDS will automatically apply your new hourly usage charge
to your existing DB Instance.
Q: If I sign up for a Reserved Instance,
when does the term begin? What happens to my DB Instance when the term ends?
Pricing changes associated with a Reserved Instance are activated once
your request is received while the payment authorization is processed. You can
follow the status of your reservation on the AWS Account Activity page or by
using the DescribeReservedDBInstances API. If the one-time payment cannot be
successfully authorized by the next billing period, the discounted price will
not take effect.
When your reservation term expires, your Reserved Instance will revert
to the appropriate On-Demand hourly usage rate for your DB Instance class and
Region.
The Amazon RDS APIs for creating, modifying, and deleting DB Instances
do not distinguish between On-Demand and Reserved Instances so that you can
seamlessly use both. When computing your bill, our system will automatically
apply your Reservation(s) such that all eligible DB Instances are charged at
the lower hourly Reserved DB Instance rate.
Each reservation is associated with the following set of attributes: DB
Engine, DB Instance class, Deployment type, License Model and Region. Each
reservation can only be applied to a DB Instance with the same attributes for
the duration of the term. If you decide to modify any of these attributes of
your running DB Instance class before the end of the reservation term, your
hourly usage rates for that DB Instance will revert to on demand hourly rates.
If you later modify the running DB Instance's attributes to match those of the
original reservation, or create a new DB Instance with the same attributes as
your original reservation, your reserved pricing will be applied to it until
the end of your reservation term.
Each Reserved Instance is associated with a specific Region, which is
fixed for the lifetime of the reservation and cannot be changed. Each
reservation can, however, be used in any of the available AZs within the
associated Region.
Yes. When you call the DescribeReservedDBInstancesOfferings API, simply
look for the Multi-AZ options listed among the DB Instance configurations
available for purchase. If you want to purchase a reservation for a DB Instance
with synchronous replication across multiple Availability Zones, specify one of
these offerings in your PurchaseReservedDBInstancesOffering call.
A standard DB Instance reservation can also be applied to a Read
Replica, provided the DB Instance class and Region are the same. When computing
your bill, our system will automatically apply your Reservation(s), such that
all eligible DB Instances are charged at the lower hourly Reserved Instance
rate.
No, you cannot cancel your Reserved DB Instance and the one-time payment
(if applicable) is not refundable. You will continue to pay for every hour
during your Reserved DB Instance term regardless of your usage.
When you purchase
an RI under the All Upfront payment option, you pay for the entire term of the
RI in one upfront payment. You can choose to pay nothing upfront by choosing
the No Upfront option. The entire value of the No Upfront RI is spread across
every hour in the term and you will be billed for every hour in the term,
regardless of usage. The Partial Upfront payment option is a hybrid of the All
Upfront and No Upfront options. You make a small upfront payment, and you are
billed a low hourly rate for every hour in the term regardless of usage.
Q: How do I determine which initial DB
Instance class and storage capacity are appropriate for my needs?
In order to select your initial DB Instance class and storage capacity,
you will want to assess your application’s compute, memory and storage needs.
For more guidelines on picking the right DB Instance class and storage
capacity, please refer to the Amazon RDS DB Instance Sizing Guide.
Q: How do I scale the compute resources
and/or storage capacity associated with my Amazon RDS Database Instance?
You can scale the compute resources and storage capacity allocated to
your DB Instance with the ModifyDBInstance API or the AWS Management Console (selecting the desired DB Instance and clicking the “Modify” button).
Memory and CPU resources are modified by changing your DB Instance class, and
storage available is changed when you modify your storage allocation. Please
note that when you modify your DB Instance class or allocated storage, your
requested changes will be applied during your specified maintenance window.
Alternately, you can use the “apply-immediately” flag to apply your scaling
requests immediately. Bear in mind that any other pending system changes will
be applied as well.
Monitor the compute and storage resource utilization of your DB
Instance, for no additional charge, via Amazon CloudWatch. You can access
metrics such as CPU utilization, storage utilization, and network traffic by
clicking the “Monitoring” tab for your DB Instance in theAWS Management Console or using the Amazon CloudWatch APIs. To learn more about monitoring your
active DB Instances, read theAmazon RDS Monitoring Guide.
Please note that for SQL Server, because of the extensibility
limitations of striped storage attached to a Windows Server environment, Amazon
RDS does not currently support increasing storage. While we plan to support
this functionality in the future, we recommend you to provision storage based
on anticipated future storage growth. In the interim, if you need to increase
the storage of a SQL Server DB Instance, you will need to export the data,
create a new DB Instance with increased storage, and import the data into it.
Please refer to the data import guide for SQL Server for more information.
Amazon RDS uses EBS volumes for database and log storage. Depending on
the size of storage requested, Amazon RDS automatically stripes across multiple
EBS volumes to enhance IOPS performance. For MySQL and Oracle, for an existing
DB Instance, you may observe some I/O capacity improvement if you scale up your
storage. You can scale the storage capacity allocated to your DB Instance using
the AWS Management
Console, the rds-modify-db-instance command, or the ModifyDBInstance API.
However, for SQL Server, because of the extensibility limitations of
striped storage attached to a Windows Server environment, Amazon RDS does not
currently support increasing storage.
The storage capacity allocated to your DB Instance can be increased
while maintaining DB Instance availability. However, when you decide to scale
the compute resources available to your DB Instance up or down, your database
will be temporarily unavailable while the DB Instance class is modified. This
period of unavailability typically lasts only a few minutes, and will occur
during the maintenance window for your DB Instance, unless you specify that the
modification should be applied immediately.
Q: How can I scale my DB Instance beyond
the largest DB Instance class and maximum storage capacity?
Amazon RDS supports a variety of DB Instance classes and storage
allocations to meet different application needs. If your application requires
more compute resources than the largest DB Instance class or more storage than
the maximum allocation, you can implement partitioning, thereby spreading your
data across multiple DB Instances.
Amazon RDS General Purpose (SSD) Storage is suitable for a broad range
of database workloads that have moderate I/O requirements. With the baseline of
3 IOPS/GB and ability to burst up to 3,000 IOPS, this storage option provides
predictable performance to meet the needs of most applications.
Amazon RDS Provisioned IOPS (SSD) Storage is an SSD-backed storage
option designed to deliver fast, predictable, and consistent I/O performance.
With Amazon RDS Provisioned IOPS (SSD) Storage, you specify an IOPS rate when
creating a DB Instance, and Amazon RDS provisions that IOPS rate for the lifetime
of the DB Instance. Amazon RDS Provisioned IOPS (SSD) Storage is optimized for
I/O-intensive, transactional (OLTP) database workloads. For more details,
please see the Amazon RDS User Guide.
Formerly known as Standard storage, Amazon RDS Magnetic Storage is
useful for small database workloads where data is accessed less frequently.
Choose the storage type most suited for your workload.
·
High-performance OLTP workloads:
Amazon RDS Provisioned IOPS (SSD) Storage
·
Database workloads with moderate I/O
requirements: Amazon RDS General Purpose (SSD) Storage
·
Small database workloads with infrequent
I/O: Amazon RDS Magnetic Storage
The IOPS supported
by Amazon RDS varies by database engine. For more details, please see the Amazon RDS User Guide.
Amazon RDS provides two different methods for backing up and restoring
your DB Instance(s) automated backups and database snapshots (DB Snapshots).
The automated backup feature of Amazon RDS enables point-in-time
recovery of your DB Instance. When automated backups are turned on for your DB
Instance, Amazon RDS automatically performs a full daily snapshot of your data
(during your preferred backup window) and captures transaction logs (as updates
to your DB Instance are made). When you initiate a point-in-time recovery,
transaction logs are applied to the most appropriate daily backup in order to
restore your DB Instance to the specific time you requested. Amazon RDS retains
backups of a DB Instance for a limited, user-specified period of time called
the retention period, which by default is one day but can be set to up to
thirty five days. You can initiate a point-in-time restore and specify any
second during your retention period, up to the Latest Restorable Time. You can
use the DescribeDBInstances API to return the latest restorable time for you DB
Instance(s), which is typically within the last five minutes. Alternatively,
you can find the Latest Restorable Time for a DB Instance by selecting it in
the AWS Management
Console and looking in the
“Description” tab in the lower panel of the Console.
DB Snapshots are user-initiated and enable you to back up your DB
Instance in a known state as frequently as you wish, and then restore to that
specific state at any time. DB Snapshots can be created with the AWS Management Console or CreateDBSnapshot API and are kept until you explicitly delete them
with the Console or DeleteDBSnapshot API.
The snapshots which Amazon RDS performs for enabling automated backups
are available to you for copying (using the AWS console or the
rds-copy-db-snapshot command)or for the snapshot restore functionality. You can
identify them using the "automated" Snapshot Type. In addition, you
can identify the time at which the snapshot has been taken by viewing the "Snapshot
Created Time" field. Alternatively, the identifier of the
"automated" snapshots also contains the time (in UTC) at which the
snapshot has been taken.
Please note: When you perform a restore operation to a point in time or
from a DB Snapshot, a new DB Instance is created with a new endpoint (the old
DB Instance can be deleted with the AWS Management Console or DeleteDBInstance
API, if so desired). This is done to enable you to create multiple DB Instances
from a specific DB Snapshot or point in time.
By default and at no additional charge, Amazon RDS enables automated
backups of your DB Instance with a 1 day retention period. Free backup storage
is limited to the size of your provisioned database and only applies to active
DB Instances. For example, if you have 10GB-months of provisioned database
storage, we will provide at most 10GB-months of backup storage at no additional
charge. If you would like to extend your backup retention period beyond one
day, you can do so using the CreateDBInstance API (when creating a new DB
Instance) or ModifyDBInstance API (for an existing DB Instance). You can use
these APIs to change the RetentionPeriod parameter from 1 to the desired number
of days. For more information on automated backups, please refer to the Amazon RDS Developer Guide.
The preferred backup window is the user-defined period of time during
which your DB Instance is backed up. Amazon RDS uses these periodic data
backups in conjunction with your transaction logs to enable you to restore your
DB Instance to any second during your retention period, up to the
LatestRestorableTime (typically up to the last few minutes). During the backup
window, storage I/O may be briefly suspended while the backup process
initializes (typically under a few seconds) and you may experience a brief
period of elevated latency. There is no I/O suspension for Multi-AZ DB
deployments, since the backup is taken from the standby.
Amazon RDS DB snapshots and automated backups are stored in S3.
You can use the AWS Management Console or ModifyDBInstance API to manage the period of time your automated
backups are retained by modifying the RetentionPeriod parameter. If you desire
to turn off automated backups altogether, you can do so by setting the
retention period to 0 (not recommended). You can manage your user-created DB
Snapshots via the DB Snapshots section of the AWS Management Console.
Alternatively, you can see a list of the user-created DB Snapshots for a given
DB Instance using the DescribeDBSnapshots API and delete snapshots with the
DeleteDBSnapshot API.
When you delete a DB Instance, you can create a final DB Snapshot upon
deletion; if you do, you can use this DB Snapshot to restore the deleted DB
Instance at a later date. Amazon RDS retains this final user-created DB
Snapshot along with all other manually created DB Snapshots after the DB
Instance is deleted. Refer to the pricing page for details of backup storage costs.
Automated backups
are deleted when the DB Instance is deleted. Only manually created DB Snapshots
are retained after the DB Instance is deleted.
Amazon VPC lets you create a virtual networking environment in a
private, isolated section of the Amazon Web Services (AWS) cloud, where you can
exercise complete control over aspects such as private IP address ranges,
subnets, routing tables and network gateways. With Amazon VPC, you can define a
virtual network topology and customize the network configuration to closely
resemble a traditional IP network that you might operate in your own
datacenter.
One of the scenarios where you may want to use Amazon RDS in VPC is if
you want to run a public-facing web application, while still maintaining
non-publicly accessible backend servers in a private subnet. You can create a
public-facing subnet for your webservers that has access to the Internet, and
place your backend RDS DB Instances in a private-facing subnet with no Internet
access. For more information about Amazon VPC, refer to the Amazon Virtual Private Cloud User Guide.
Q:
How is using Amazon RDS inside a VPC different from using it on the EC2-Classic
platform (non-VPC)?
The basic functionality of Amazon RDS is the same regardless of whether
VPC is used. Amazon RDS manages backups, software patching, automatic failure
detection, read replicas and recovery whether your DB Instances are deployed
inside or outside a VPC.
Amazon RDS DB Instances deployed outside a VPC are assigned an external
IP address (to which the Endpoint/DNS Name resolves) that provides connectivity
from EC2 or the Internet. In Amazon VPC, Amazon RDS DB instances only have a
private IP address (within a subnet that you define). You can configure a VPC
to make an Amazon RDS DB instance in that VPC publicly accessible; see the VPC documentation for more information. For more information about the differences between
EC2-Classic and EC2-VPC, see the EC2 documentation.
A DB Subnet Group is a collection of subnets that you may want to
designate for your RDS DB Instances in a VPC. Each DB Subnet Group should have
at least one subnet for every Availability Zone in a given Region. When
creating a DB Instance in VPC, you will need to select a DB Subnet Group.
Amazon RDS then uses that DB Subnet Group and your preferred Availability Zone
to select a subnet and an IP address within that subnet. Amazon RDS creates and
associates an Elastic Network Interface to your DB Instance with that IP
address.
Please note that, we strongly recommend you use the DNS Name to connect
to your DB Instance as the underlying IP address can change (e.g., during a
failover).
For Multi-AZ deployments, defining a subnet for all Availability Zones
in a Region will allow Amazon RDS to create a new standby in another
Availability Zone should the need arise. You need to do this even for Single-AZ
deployments, just in case you want to convert them to Multi-AZ deployments at
some point.
Following are the pre-requisites necessary to create a DB Instances
within a VPC:
·
You need to have a VPC set up with at
least one subnet created in every Availability Zone in the Region you want to
deploy your DB Instance. For information on creating Amazon VPC and subnets refer
to the Getting Started Guide for Amazon VPC.
·
You need to have a DB Subnet Group
defined for your VPC.
·
You need to have a DB Security Group
defined for your VPC (or you can use the default provided).
·
In addition, you should allocate
adequately large CIDR blocks to each of your subnets so that there are enough
spare IP addresses for Amazon RDS to use during maintenance activities
including scale compute and failover etc.
Visit the Security Groups section of the Amazon RDS User Guide to learn about the different ways
to control access to your DB Instances.
VPC Security Groups can be used to help secure DB Instances within an
Amazon VPC. In addition, network traffic entering and exiting each subnet can
be allowed or denied via network Access Control Lists (ACLs). All network
traffic entering or exiting your VPC via your IPsec VPN connection can be
inspected by your on-premise security infrastructure, including network
firewalls, intrusion detection and prevention systems.
DB Instances deployed within a VPC can be accessed by EC2 Instances
deployed in the same VPC. If these EC2 Instances are deployed in a public
subnet with associated Elastic IPs, you can access the EC2 Instances via the
internet.
DB Instances deployed within a VPC can be accessed from the Internet or
from EC2 Instances outside the VPC via VPN or bastion hosts that you can launch
in your public subnet, or using Amazon RDS's Publicly Accessible option:
·
To use a bastion host, you will need
to set up a public subnet with an EC2 instance that acts as a SSH Bastion. This
public subnet must have an internet gateway and routing rules that allow
traffic to be directed via the SSH host, which must then forward requests to
the private IP address of your RDS DB instance.
·
To use public connectivity, simply
create your DB Instances with the Publicly Accessible option set to yes. With
Publicly Accessible active, your DB Instances within a VPC will be fully
accessible outside your VPC by default. This means you do not need to configure
a VPN or bastion host to allow access to your instances.
You can also set up a VPN Gateway that extends your corporate network
into your VPC, and allows access to the RDS DB instance in that VPC. Refer to
the Amazon VPC User Guide for more details.
We strongly recommend you use the DNS Name to connect to your DB
Instance as the underlying IP address can change (e.g., during failover).
You can take a snapshot of your DB Instance outside VPC and restore it
to VPC by specifying the DB Subnet Group you want to use. Alternatively, you
can perform a “Restore to Point in Time” operation as well.
Currently, direct migration of DB Instances from inside to outside VPC
is not supported. For security reasons, a DB Snapshot of a DB Instance inside
VPC cannot be restored to outside VPC. The same is true with “Restore to Point
in Time” functionality. If you need to move your DB Instance from inside to
outside VPC, you will need to export your data from your source DB Instance in your
VPC to your target DB Instance deployed outside VPC.
Q:
What precautions should I take to ensure that my DB Instances in VPC are
accessible by my application?
You are responsible for modifying routing tables and networking ACLs in
your VPC to ensure that your DB instance is reachable from your client
instances in the VPC.
For Multi-AZ deployments, after a failover, your client EC2 instance and
RDS DB Instance may be in different Availability Zones. You should configure
your networking ACLs to ensure that cross-AZ communication is possible.
An existing DB Subnet Group can be updated to add more subnets, either
for existing Availability Zones or for new Availability Zones added since the
creation of the DB Instance. Removing subnets from an existing DB Subnet Group
can cause unavailability for instances if they are running in a particular AZ
that gets removed from the subnet group.
At the present time, updating an existing DB Subnet Group does not
change the current subnet of the deployed DB instance; an instance-type scale
operation is required. Explicitly changing the DB Subnet Group of a deployed DB
instance is not currently allowed.
To begin using Amazon RDS you will need an AWS developer account. If you
do not have one prior to signing up for Amazon RDS, you will be prompted to
create one when you begin the sign-up process. A master user account is
different from an AWS developer account and used only within the context of
Amazon RDS to control access to your DB Instance(s). The master user account is
a native database user account which you can use to connect to your DB
Instance. You can specify the master user name and password you want associated
with each DB Instance when you create the DB Instance. Once you have created
your DB Instance, you can connect to the database using the master user
credentials. Subsequently, you may also want to create additional user accounts
so that you can restrict who can access your DB Instance.
For MySQL, the default privileges for the master user include: create,
drop, references, event, alter, delete, index, insert, select, update, create
temporary tables, lock tables, trigger, create view, show view, alter routine,
create routine, execute, trigger, create user, process, show databases, grant
option.
For Oracle, the master user is granted the "dba" role. The master
user inherits most of the privileges associated with the role. Please refer to
the Amazon RDS User Guide for the list of restricted privileges and the corresponding alternatives
to perform administrative tasks that may require these privileges.
For SQL Server, a user that creates a database is granted the
"db_owner" role. Please refer to the Amazon RDS User Guide for the list of restricted privileges and the corresponding alternatives
to perform administrative tasks that may require these privileges.
No, everything works the way you are familiar with when using a
relational database you manage yourself.
Yes. You have to intentionally turn on the ability to access your
database over the internet by configuring Security Groups. You can authorize access for only
the specific IPs, IP ranges, or subnets corresponding to servers in your own
data center.
Yes, this option is currently supported for the MySQL, MariaDB, SQL
Server, PostgreSQL, and Oracle engines.
Amazon RDS generates an SSL certificate for each DB Instance. Once an
encrypted connection is established, data transferred between the DB Instance
and your application will be encrypted during transfer.
While SSL offers security benefits, be aware that SSL encryption is a
compute-intensive operation and will increase the latency of your database
connection. SSL support within Amazon RDS is for encrypting the connection
between your application and your DB Instance; it should not be relied on for
authenticating the DB Instance itself.
For details on
establishing an encrypted connection with Amazon RDS, please visit Amazon RDS's MySQL User Guide, MariaDB User Guide, SQL Server User Guide, PostgreSQL User Guide or Oracle User Guide. To learn more about how SSL works
with these engines, you can refer directly to the MySQL documentation, the MariaDB documentation, the MSDN SQL Server documentation, the PostgreSQL documentation, or the Oracle Documentation.
Amazon RDS supports encryption at rest for all database engines, using
keys you manage using AWS Key Management
Service (KMS). On a database instance running with
Amazon RDS encryption, data stored at rest in the underlying storage is
encrypted, as are its automated backups, read replicas, and snapshots.
Encryption and decryption are handled transparently. For more information about
the use of KMS with Amazon RDS, see the Amazon RDS User's Guide.
At the present time, encrypting an existing DB Instance is not
supported. To use Amazon RDS encryption for an existing database, create a new
DB Instance with encryption enabled and migrate your data into it.
Amazon RDS for
Oracle and SQL Server support those engines' Transparent Data Encryption
technologies. Transparent Data Encryption in Oracle is integrated with AWS CloudHSM, which allows you to securely
generate, store, and manage your cryptographic keys in single-tenant Hardware
Security Module (HSM) appliances within the AWS cloud. For more information, see
the Amazon RDS User's Guide sections on Oracle and SQL Server.
You can control the
actions that your AWS IAM users and groups can take on RDS resources. You do this by referencing
the RDS resources in the AWS IAM policies that you apply to your users and groups. RDS resources that can be
referenced in an AWS IAM policy includes DB Instances, DB Snapshots, Read
Replicas, DB Security Groups, DB Option Groups, DB Parameter Groups, Event
Subscriptions and DB Subnet Groups. In addition, you can tag these resources to
add additional metadata to your resources. By using tagging, you can categorize
your resources (e.g. "Development" DB Instances,
"Production" DB Instances, "Test" DB Instances etc), and
write AWS IAM policies that list the permissions (i.e. actions) that can taken
on resources with the same tags. For more information, refer to Managing Access to Your Amazon RDS Resources and Databases and Tagging Amazon RDS Resources
Q: I wish to perform security analysis or
operational troubleshooting on my RDS deployment. Can I get a history of all
RDS API calls made on my account?
Yes. AWS CloudTrail
is a web service that records AWS API calls for your account and delivers log
files to you. The AWS API call history produced by CloudTrail enables security
analysis, resource change tracking, and compliance auditing. Learn more about
CloudTrail at the AWS CloudTrail
detail page, and turn it on via CloudTrail's AWS Management Console home page.
Amazon RDS by default chooses the optimal configuration parameters for
your DB Instance taking into account the DB Instance’s compute resource and storage
capacity. However, if you want to change them, you can do so using our
configuration management APIs. Please note that changing configuration
parameters from recommended values can have unintended effects, ranging from
degraded performance to system crashes, and should only be attempted by
advanced users who wish to assume these risks. For more information on changing
parameters, please refer to the Amazon RDS User Guide.
A database parameter group (DB Parameter Group) acts as a “container”
for engine configuration values that can be applied to one or more DB
Instances. If you create a DB Instance without specifying a DB Parameter Group,
a default DB Parameter Group is used. This default group contains engine
defaults and Amazon RDS system defaults optimized for the DB Instance you are
running. However, if you want your DB Instance to run with your
custom-specified engine configuration values, you can simply create a new DB
Parameter Group, modify the desired parameters, and modify the DB Instance to
use the new DB Parameter Group. Once associated, all DB Instances that use a
particular DB Parameter Group get all the parameter updates to that DB
Parameter Group. For more information on configuring DB Parameter Groups,
please read the DB Parameter Group Deployment Guide.
You can use the AWS Management Console, Amazon RDS APIs,
or Command Line Tools to see information about your DB Parameter Groups and
their corresponding parameter settings.
Amazon RDS provides two distinct replication options to serve different
purposes.
If you are looking to use replication to increase database availability
while protecting your latest database updates against unplanned outages,
consider running your DB Instance as a Multi-AZ deployment. When you create or
modify your DB Instance to run as a Multi-AZ deployment, Amazon RDS will
automatically provision and manage a “standby” replica in a different
Availability Zone (independent infrastructure in a physically separate
location). In the event of planned database maintenance, DB Instance failure,
or an Availability Zone failure, Amazon RDS will automatically failover to the
standby so that database operations can resume quickly without administrative
intervention. Multi-AZ deployments utilize synchronous replication, making database
writes concurrently on both the primary and standby so that the standby will be
up-to-date in the event a failover occurs. While our technological
implementation for Multi-AZ DB Instances maximizes data durability in failure
scenarios, it precludes the standby from being accessed directly or used for
read operations. The fault tolerance offered by Multi-AZ deployments make them
a natural fit for production environments; to learn more about Multi-AZ
deployments, please visit this FAQ section.
Multi-AZ deployments are supported for the MySQL, Oracle, PostgreSQL,
and SQL Server database engines. Multi-AZ deployments for SQL Server are
presently available in the US East (Northern Virginia), US West (Oregon), and
EU (Dublin) AWS Regions.
To help you to scale beyond the capacity constraints of a single DB
Instance for read-heavy database workloads, Amazon RDS offers Read Replicas.
You can create a Read Replica of a given source DB Instance using the AWS
Management Console or the CreateDBInstanceReadReplica API. Once the Read
Replica is created, database updates on the source DB Instance will be
propagated to the Read Replica. You can create multiple Read Replicas for a
given source DB Instance and distribute your application’s read traffic amongst
them.
Read Replicas are supported by Amazon RDS for MySQL and PostgreSQL.
Unlike Multi-AZ deployments, Read Replicas for these engines use each's
built-in replication technology and are subject to its strengths and
limitations. In particular, updates are applied to your Read Replica(s) after
they occur on the source DB Instance (“asynchronous” replication), and
replication lag can vary significantly. This means recent database updates made
to a standard (non Multi-AZ) source DB Instance may not be present on
associated Read Replicas in the event of an unplanned outage on the source DB
Instance. As such, Read Replicas do not offer the same data durability benefits
as Multi-AZ deployments. While Read Replicas can provide some read availability
benefits, they and are not designed to improve write availability.
You can use
Multi-AZ deployments and Read Replicas in conjunction to enjoy the
complementary benefits of each. You can simply specify that a given Multi-AZ
deployment is the source DB Instance for your Read Replica(s). That way you
gain both the data durability and availability benefits of Multi-AZ deployments
and the read scaling benefits of Read Replicas.
When you create or modify your DB Instance to run as a Multi-AZ
deployment, Amazon RDS automatically provisions and maintains a synchronous
“standby” replica in a different Availability Zone. Updates to your DB Instance
are synchronously replicated across Availability Zones to the standby in order
to keep both in sync and protect your latest database updates against DB
Instance failure. During certain types of planned maintenance, or in the
unlikely event of DB Instance failure or Availability Zone failure, Amazon RDS
will automatically failover to the standby so that you can resume database
writes and reads as soon as the standby is promoted. Since the name record for
your DB Instance remains the same, your application can resume database
operation without the need for manual administrative intervention. With
Multi-AZ deployments, replication is transparent: you do not interact directly
with the standby, and it cannot be used to serve read traffic. If you are using
Amazon RDS for MySQL and are looking to scale read traffic beyond the capacity
constraints of a single DB Instance, you can deploy one or more Read Replicas.
Q: What is an Availability Zone?
Availability Zones are distinct locations within a Region that are
engineered to be isolated from failures in other Availability Zones. Each
Availability Zone runs on its own physically distinct, independent
infrastructure, and is engineered to be highly reliable. Common points of
failures like generators and cooling equipment are not shared across
Availability Zones. Additionally, they are physically separate, such that even
extremely uncommon disasters such as fires, tornados or flooding would only affect
a single Availability Zone. Availability Zones within the same Region benefit
from low-latency network connectivity.
When you run a DB Instance as a Multi-AZ deployment, the “primary”
serves database writes and reads. In addition, Amazon RDS provisions and
maintains a “standby” behind the scenes, which is an up-to-date replica of the
primary. The standby is “promoted” in failover scenarios. After failover, the
standby becomes the primary and accepts your database operations. You do not
interact directly with the standby (e.g. for read operations) at any point
prior to promotion. If you are interested in scaling read traffic beyond the
capacity constraints of a single DB Instance, please see the FAQs on Read Replicas.
The chief benefits of running your DB Instance as a Multi-AZ deployment
are enhanced database durability and availability. The increased availability
and fault tolerance offered by Multi-AZ deployments make them a natural fit for
production environments.
Running your DB Instance as a Multi-AZ deployment safeguards your data
in the unlikely event of a DB Instance component failure or loss of
availability in one Availability Zone. For example, if a storage volume on your
primary fails, Amazon RDS automatically initiates a failover to the standby,
where all of your database updates are intact. This provides additional data
durability relative to standard deployments in a single AZ, where a
user-initiated restore operation would be required and updates that occurred
after the latest restorable time (typically within the last five minutes) would
not be available.
You also benefit from enhanced database availability when running your
DB Instance as a Multi-AZ deployment. If an Availability Zone failure or DB
Instance failure occurs, your availability impact is limited to the time
automatic failover takes to complete. The availability benefits of Multi-AZ
also extend to planned maintenance. For example, with automated backups, I/O
activity is no longer suspended on your primary during your preferred backup
window, since backups are taken from the standby. In the case of patching or DB
Instance class scaling, these operations occur first on the standby, prior to
automatic fail over. As a result, your availability impact is limited to the
time required for automatic failover to complete.
Another implied benefit of running your DB Instance as a Multi-AZ
deployment is that DB Instance failover is automatic and requires no
administration. In an Amazon RDS context, this means you are not required to
monitor DB Instance events and initiate manual DB Instance recovery (via the RestoreDBInstanceToPointInTime
or RestoreDBInstanceFromSnapshot APIs) in the event of an Availability Zone
failure or DB Instance failure.
You may observe elevated latencies relative to a standard DB Instance
deployment in a single Availability Zone as a result of the synchronous data
replication performed on your behalf.
Q: When running my DB Instance as a
Multi-AZ deployment, can I use the standby for read or write operations?
No, the standby replica cannot serve read requests. Multi-AZ deployments
are designed to provide enhanced database availability and durability, rather
than read scaling benefits. As such, the feature uses synchronous replication
between primary and standby. Our implementation makes sure the primary and the
standby are constantly in sync, but precludes using the standby for read or
write operations. If you are interested in a read scaling solution, please see
the FAQs on Read Replicas.
In order to create a Multi-AZ DB Instance deployment, simply click the
“Yes” option for “Multi-AZ Deployment” when launching a DB Instance with the AWS Management Console. Alternatively, if
you are using the Amazon RDS APIs, you would call the CreateDBInstance API and
set the “Multi-AZ” parameter to the value “true.” To convert an existing
standard (single AZ) DB Instance to Multi-AZ, modify the DB Instance in the AWS
Management Console or use the ModifyDBInstance API and set the Multi-AZ
parameter to true.
For the RDS MySQL, MariaDB, PostgreSQL and Oracle database engines, when
you elect to convert your RDS instance from Single-AZ to Multi-AZ, the
following happens:
·
A snapshot of your primary instance
is taken
·
A new standby instance is created in
a different Availability Zone, from the snapshot
·
Synchronous replication is configured
between primary and standby instances
As such, there should be no downtime incurred when an instance is
converted from Single-AZ to Multi-AZ.
Amazon RDS detects and automatically recovers from the most common
failure scenarios for Multi-AZ deployments so that you can resume database
operations as quickly as possible without administrative intervention. Amazon
RDS automatically performs a failover in the event of any of the following:
·
Loss of availability in primary
Availability Zone
·
Loss of network connectivity to
primary
·
Compute unit failure on primary
·
Storage failure on primary
Note: When operations
such as DB Instance scaling or system upgrades like OS patching are initiated
for Multi-AZ deployments, for enhanced availability, they are applied first on
the standby prior to an automatic failover. As a result, your availability
impact is limited only to the time required for automatic failover to complete.
Note that Amazon RDS Multi-AZ deployments do not failover automatically in
response to database operations such as long running queries, deadlocks or
database corruption errors.
Yes, Amazon RDS will emit a DB Instance event to inform you that
automatic failover occurred. You can use the DescribeEvents to return
information about events related to your DB Instance, or click the “DB Events”
section of the AWS Management Console.
Failover is automatically handled by Amazon RDS so that you can resume
database operations as quickly as possible without administrative intervention.
When failing over, Amazon RDS simply flips the canonical name record (CNAME)
for your DB Instance to point at the standby, which is in turn promoted to
become the new primary. We encourage you to follow best practices and implement
database connection retry at the application layer.
Failovers, as defined by the interval between the detection of the
failure on the primary and the resumption of transactions on the standby,
typically complete within one to two minutes. Failover time can also be
affected by whether large uncommitted transactions must be recovered; the use
of adequately large instance types is recommended with Multi-AZ for best
results. AWS also recommends the use of Provisioned IOPS with Multi-AZ
instances, for fast, predictable, and consistent throughput performance.
Amazon RDS will automatically failover without user intervention under a
variety of failure conditions. In addition, Amazon RDS provides an option to initiate a failover when
rebooting your instance. You can access this feature via the AWS Management
Console or when using the RebootDBInstance API call.
With Multi-AZ deployments, you simply set the “Multi-AZ” parameter to
true. The creation of the standby, synchronous replication, and failover are
all handled automatically. This means you cannot select the Availability Zone
your standby is deployed in or alter the number of standbys available (Amazon
RDS provisions one dedicated standby per DB Instance primary). The standby also
cannot be configured to accept database read activity. Learn more about Multi-AZ configurations.
Yes. Your standby is automatically provisioned in a different
Availability Zone of the same Region as your DB Instance primary.
Yes, you can gain visibility into the location of the current primary by
using the AWS Management
Console or
DescribeDBInstances API.
Q: After failover, my primary is now
located in a different Availability Zone than my other AWS resources (e.g. EC2
instances). Should I be concerned about latency?
Availability Zones are engineered to provide low latency network
connectivity to other Availability Zones in the same Region. In addition, you
may want to consider architecting your application and other AWS resources with
redundancy across multiple Availability Zones so your application will be
resilient in the event of an Availability Zone failure. Multi-AZ deployments
address this need for the database tier without administration on your part.
You interact with automated backup and DB Snapshot functionality in the
same way whether you are running a standard deployment in a Single-AZ or
Multi-AZ deployment. If you are running a Multi-AZ deployment, automated
backups and DB Snapshots are simply taken from the standby to avoid I/O
suspension on the primary. Please note that you may experience increased I/O
latency (typically lasting a few minutes) during backups for both Single-AZ and
Multi-AZ deployments.
Initiating a
restore operation (point-in-time restore or restore from DB Snapshot) also
works the same with Multi-AZ deployments as standard, Single-AZ deployments.
New DB Instance deployments can be created with either the
RestoreDBInstanceFromSnapshot or RestoreDBInstanceToPointInTime APIs. These new
DB Instance deployments can be either standard or Multi-AZ, regardless of
whether the source backup was initiated on a standard or Multi-AZ deployment.
Read Replicas make it easy to take advantage of supported engines'
built-in replication functionality to elastically scale out beyond the capacity
constraints of a single DB Instance for read-heavy database workloads. You can
create a Read Replica with a few clicks in the AWS Management Console or using
the CreateDBInstanceReadReplica API. Once the Read Replica is created, database
updates on the source DB Instance will be replicated using a supported engine's
native, asynchronous replication. You can create multiple Read Replicas for a
given source DB Instance and distribute your application’s read traffic amongst
them. Since Read Replicas use supported engines' built-in replication, they are
subject to its strengths and limitations. In particular, updates are applied to
your Read Replica(s) after they occur on the source DB Instance, and
replication lag can vary significantly. Read Replicas can be associated with Multi-AZ
deployments to gain read scaling benefits in addition to the enhanced database
write availability and data durability provided by Multi-AZ
deployments .
There are a variety of scenarios where deploying one or more Read
Replicas for a given source DB Instance may make sense. Common reasons for
deploying a Read Replica include:
·
Scaling beyond the compute or I/O
capacity of a single DB Instance for read-heavy database workloads. This excess
read traffic can be directed to one or more Read Replicas.
·
Serving read traffic while the source
DB Instance is unavailable. If your source DB Instance cannot take I/O requests
(e.g. due to I/O suspension for backups or scheduled maintenance), you can
direct read traffic to your Read Replica(s). For this use case, keep in mind
that the data on the Read Replica may be “stale” since the source DB Instance
is unavailable.
·
Business reporting or data warehousing
scenarios; you may want business reporting queries to run against a Read
Replica, rather than your primary, production DB Instance.
Yes. Enable automatic backups on your DB Instance before adding Read
Replicas, by setting the backup retention period to a value other than 0.
Backups must remain enabled for Read Replicas to work.
Amazon RDS for MySQL: Automatic backups
must be and remain enabled for Read Replica operations. Automatic backups are
supported only for Amazon RDS Read Replicas running MySQL 5.6 and later,
not 5.1 or 5.5.
Amazon RDS for PostgreSQL: Only instances
with PostgreSQL version 9.3.5 or newer support creation of Read Replicas.
Existing PostgreSQL instances prior to version 9.3.5 need to be upgraded to
PostgreSQL version 9.3.5 to take advantage of Amazon RDS Read Replicas.
Amazon RDS for MariaDB: Automatic
backups must be and remain enabled for Read Replica operations.
Amazon RDS for MySQL Read Replicas require a transactional storage
engine and are only supported for the InnoDB storage engine. Non-transactional
MySQL storage engines such as MyISAM might prevent Read Replicas from working
as intended. However, if you still choose to use MyISAM with Read Replicas, we
advise you to watch the Amazon CloudWatch “Replica Lag” metric (available via
the AWS Management Console or Amazon CloudWatch APIs) carefully and recreate
the Read Replica should it fall behind due to replication errors. The same
considerations apply to the use of temporary tables and any other
non-transactional engines.
You can create a Read Replica in minutes using the standard
CreateDBInstanceReadReplica API or a few clicks of the Amazon RDS Management
Console. When creating a Read Replica, you can identify it as a Read Replica by
specifying a SourceDBInstanceIdentifier. The SourceDBInstanceIdentifier is the
DB Instance Identifier of the “source” DB Instance from which you wish to
replicate. As with a standard DB Instance, you can also specify the Availability
Zone, DB Instance class, and preferred maintenance window. The engine version
(e.g., PostgreSQL 9.3.5) and storage allocation of a Read Replica is inherited
from the source DB Instance. When you initiate the creation of a Read Replica,
Amazon RDS takes a snapshot of your source DB Instance and begins replication.
As a result, you will experience a brief I/O suspension on your source DB
Instance as the snapshot occurs. The I/O suspension typically lasts on the
order of one minute, and is avoided if the source DB Instance is a Multi-AZ
deployment (in the case of Multi-AZ deployments, snapshots are taken from the
standby). Amazon RDS is also currently working on an optimization (to be
released shortly) such that if you create multiple Read Replicas within a 30
minute window, all of them will use the same source snapshot to minimize I/O
impact (“catch-up” replication for each Read Replica will begin after
creation).
Amazon RDS Read Replicas are as easy to delete as they are to create;
simply use the Amazon RDS Management Console or call the DeleteDBInstance API
(specifying the DBInstanceIdentifier for the Read Replica you wish to delete).
When requesting the creation of a Read Replica, here are a couple of
additional things to consider:
·
If you are using a non-transactional
engine such as MyISAM, you will need to perform the following steps to
successfully set up your Read Replica. These steps are required in order to
ensure that the Read Replica has a consistent copy of your data. Note that
these steps are not required if all of your tables use a transactional engine
such as InnoDB. 1. Stop all DML and DDL operations on non-transactional tables
and wait for them to complete. SELECT statements can continue running. 2. Flush
and lock those tables. 3. Create the Read Replica using the
CreateDBInstanceReadReplica API. 4. Check the progress of the Replica creation
using the DescribeDBInstances API. Once the Replica is available unlock the
tables and resume normal database operations.
·
If there are any long running transactions
on your source RDS instance, wait for them to complete before requesting
creation of a Read Replica from that source.
You can connect to a Read Replica just as you would connect to a
standard DB Instance, using the DescribeDBInstance API or AWS Management
Console to retrieve the endpoint(s) for you Read Replica(s). If you have
multiple Read Replicas, it is up to your application to determine how read
traffic will be distributed amongst them.
Amazon RDS for MySQL and PostgreSQL currently allow you to create up to
five (5) Read Replicas for a given source DB Instance.
Amazon RDS for MySQL and PostgreSQL supports cross-region Read Replicas.
No. Read Replicas in Amazon RDS for MySQL and PostgreSQL are implemented
using those engines' native asynchronous replication.
Q: Can I use a Read Replica to enhance
database write availability or protect the data on my source DB Instance
against failure scenarios?
If you are looking to use replication to increase database write
availability and protect recent database updates against various failure
conditions, we recommend you run your DB Instance as a Multi-AZ deployment.
With Amazon RDS Read Replicas, which employ supported engines' native,
asynchronous replication, database writes occur on a Read Replica after they
have already occurred on the source DB Instance, and this replication “lag” can
vary significantly. In contrast, the replication used by Multi-AZ deployments
is synchronous, meaning that all database writes are concurrent on the primary
and standby. This protects your latest database updates, since they should be
available on the standby in the event a failover is required. In addition, with
Multi-AZ deployments replication is fully managed. Amazon RDS automatically
monitors for DB Instance failure conditions or Availability Zone failure and
initiates automatic failover to the standby if an outage occurs.
Yes. Since Multi-AZ DB Instances address a different need than Read
Replicas, it makes sense to use the two in conjunction for production
deployments and to associate a Read Replica with a Multi-AZ DB Instance
deployment. The “source” Multi AZ-DB Instance provides you with enhanced write
availability and data durability, and the associated Read Replica would improve
read traffic scalability.
Amazon RDS for MySQL and PostgreSQL
do not presently support this.
Q: If my Read Replica(s) use a Multi-AZ
DB Instance deployment as a source, what happens if Multi-AZ failover occurs?
In the event of a Multi-AZ failover,
any associated and available Read Replicas should automatically resume
replication once failover has completed (acquiring updates from the newly
promoted primary).
Q: My Amazon RDS for MySQL Read Replica
appears “stuck” after a Multi-AZ failover and is unable to obtain or apply
updates from the source DB Instance. What do I do?
You may find in some cases that your
Amazon RDS for MySQL Read Replica(s) aren’t able to receive or apply updates
from their source Multi-AZ DB Instance after a Multi-AZ failover. This is
because some MySQL binlog events were not flushed to disk at the time of the
failover. After the failover, the Read Replica may ask for binlogs from the
source that it doesn’t have. This loss of MySQL binlogs during a crash is
described in the MySQL document here.
Of particular relevance to this issue
is the paragraph near the bottom that describes the MySQL sync-binlog
parameter. This parameter controls how MySQL binlogs are flushed to disk, and
when using InnoDB, how the binlogs and InnoDB logs may be kept in sync.
To resolve the current issue, you
will need to delete the Read Replica and create a new one to replace it. To
avoid this issue in the future, setting sync-binlog=1 will greatly reduce the
chance that MySQL binlogs needed by the Read Replica will be lost during a
crash/failover scenario. As the MySQL documentation explains, even this doesn’t
completely resolve the issue. To further reduce the likelihood of hitting this
issue, set innodb_support_xa=1. Note that there may be a performance penalty
for setting these variables. Both sync_binlog and innodb_support_xa are dynamic
variables, so if you find that the performance penalty is too great, you can
reset them without taking an outage.
This is ultimately a choice between
performance and improving the automatic resynchronization of Read Replicas
after a source Multi-AZ failover. One of the advantages of Amazon RDS Read
Replicas is that they can be quickly re-instantiated when synchronization
issues arise by deleting and re-creating them. As such, you don’t have to take
the performance hit from setting sync-binlog and/or innodb_support_xa if
manually dropping out of sync Read Replicas and re-creating them meets your
needs.
Amazon RDS for MySQL: You can create a second-tier Read
Replica from an existing first-tier Read Replica. By creating a second-tier
Read Replica, you may be able to move some of the replication load from the
master database instance to a first-tier Read Replica. Please note that a
second-tier Read Replica may lag further behind the master because of
additional replication latency introduced as transactions are replicated from
the master to the first tier replica and then to the second-tier replica.
Amazon RDS for PostgreSQL: Read Replicas of Read Replicas are
not currently supported.
Read Replicas are designed to serve
read traffic. However, there may be use cases where advanced users wish to
complete Data Definition Language (DDL) SQL statements against a Read Replica.
Examples might include adding a database index to a Read Replica that is used
for business reporting, without adding the same index to the corresponding
source DB Instance.
Amazon RDS for MySQL can be
configured to permit DDL SQL statements against a Read Replica. If you wish to
enable operations other than reads for a given Read Replica, modify the
active DB Parameter Group for the Read Replica, setting the “read_only”
parameter to “0.”
Amazon RDS for PostgreSQL does not
currently support the execution of DDL SQL statements against a Read Replica.
Updates to a source DB Instance will
automatically be replicated to any associated Read Replicas. However, with
supported engines' asynchronous replication technology, a Read Replica can fall
behind its source DB Instance for a variety of reasons. Typical reasons
include:
·
Write I/O volume to the source DB
Instance exceeds the rate at which changes can be applied to the Read Replica
(this problem is particularly likely to arise if the compute capacity of a Read
Replica is less than the source DB Instance)
·
Complex or long-running transactions
to the source DB Instance hold up replication to the Read Replica
·
Network partitions or latency between
the source DB Instance and a Read Replica
Read Replicas are subject to the
strengths and weaknesses of supported engines' native replication. If you are
using Read Replicas, you should be aware of the potential for lag between a
Read Replica and its source DB Instance, or “inconsistency”. Click here for guidance on what to do if your Read Replica(s) fall significantly
behind its source.
You can use the standard
DescribeDBInstances API to return a list of all the DB Instances you have
deployed (including Read Replicas), or simply click on the "DB
Instances" tab of the Amazon RDS Management Console.
Amazon RDS allows you to gain
visibility into how far a Read Replica has fallen behind its source DB
Instance. The number of seconds that the Read Replica is behind the master is
published as an Amazon CloudWatch metric ("Replica Lag") available
via the AWS Management Console or Amazon CloudWatch APIs. For Amazon RDS for
MySQL, the source of this information is the same as that displayed by issuing
a standard "Show Slave Status" MySQL command against the Read
Replica. For Amazon RDS for PostgreSQL, you can use the pg_stat_replication
view on the source DB Instance to explore replication metrics.
Amazon RDS monitors the replication
status of your Read Replicas and updates the Replication State field in the AWS
Management console to "Error" if replication stops for any reason
(e.g., attempting DML queries on your replica that conflict with the updates
made on the master database instance could result in a replication error). You
can review the details of the associated error thrown by the MySQL engine by
viewing the Replication Error field and take an appropriate action to recover
from it. You can learn more about troubleshooting replication issues in the
Troubleshooting a Read Replica Problem section of the User Guide for Amazon RDS
for MySQL or PostgreSQL.
If a replication error is fixed, the
Replication State changes to Replicating.
As discussed in the previous
questions, “inconsistency” or lag between a Read Replica and its source DB
Instance is common with asynchronous replication. If an existing Read Replica
has fallen too far behind to meet your requirements, you can delete it and
create a new one with the same endpoint by using the same DB Instance
Identifier and Source DB Instance Identifier as the deleted Read Replica. Keep
in mind that the re-creation process will be counter-productive at small lag
levels (e.g. under five minutes of lag), and should be used with prudence (i.e.
only when the Read Replica is significantly behind its source DB Instance).
Also keep in mind that replica lag may naturally grow and shrink over time,
depending on your source DB Instance’s steady-state usage pattern.
Scaling the DB Instance class of a
Read Replica may reduce replication lag in some cases, particularly if your
source DB Instance class is larger than your Read Replica DB Instance class.
However, Read Replicas are not guaranteed to work in all cases. There may be
scenarios and usage patterns where a Read Replica can never catch up with its
source after initial creation, or otherwise remains too far behind its source
to meet your use case requirements.
Q: I scaled the compute and/or storage
capacity of my source DB Instance. Should I scale the resources for associated
Read Replica(s) as well?
For replication to work effectively,
we recommend that Read Replicas have as much or more compute and storage
resources as their respective source DB Instances. Otherwise replication lag is
likely to increase or your Read Replica may run out of space to store
replicated updates.
Q: Can I configure the replication
between my source Amazon RDS for MySQL DB Instance and a Read Replica to use
row-based replication?
You can set the binary logging format
to row-based, for MySQL version 5.6 and later. By default, replication is set
to mixed-format (which includes both row-based and statement-based replication)
which should meet the requirements of most use cases. The MySQL documentation
offers more information about the difference between mixed-format and row-based replication.
No. If you are looking to increase
database write availability by taking backups from your Read Replica instead of
its source DB Instance, you can accomplish the same objective by running your
DB Instance as a Multi-AZ deployment. Backups will then be initiated from the
Multi-AZ standby to minimize availability impact.
Q: How do I delete a Read Replica? Will
it be deleted automatically if its source DB Instance is deleted?
You can easily delete a Read Replica
with a few clicks of the AWS Management Console or by passing its DB Instance
identifier to the DeleteDBInstance API.
An Amazon RDS for MySQL Read Replica
will stay active and continue accepting read traffic even after its
corresponding source DB Instance has been deleted. If you desire to delete the
Read Replica in addition to the source DB Instance, you must explicitly do so
using the DeleteDBInstance API or AWS Management Console.
If you delete an Amazon RDS for
PostgreSQL DB Instance that has Read Replicas, all Read Replicas will be
promoted to standalone DB Instances and will be able to accept both read and
write traffic. The newly promoted DB Instances will operate independently of
one another. If you desire to delete these DB Instances in addition to the
original source DB Instance, you must explicitly do so using the
DeleteDBInstance API or AWS Management Console.
Amazon RDS for MySQL does not
currently provide access to the binary logs for your Database Instance.
Similarly, Amazon RDS for PostgreSQL does not currently provide access to the
WAL files for your Database Instance.
A Read Replica is billed as a
standard DB Instance and at the same rates. Click here for more information on
DB Instance billing visit thisFAQ. Just like a standard DB Instance,
the rate per “DB Instance hour” for a Read Replica is determined by the DB
Instance class of the Read Replica – please see Amazon RDS detail page for up-to-date pricing. You are not charged for the data transfer
incurred in replicating data between your source DB Instance and Read Replica.
Billing for a Read Replica begins as soon as the Read Replica has been
successfully created (i.e. when status is listed as “active”). The Read Replica
will continue being billed at standard Amazon RDS DB Instance hour rates until
you issue a command to delete it.
Read Replicas in
both Amazon RDS for PostgreSQL and MySQL allow you to elastically scale out
beyond the capacity constraints of a single DB instance for read-heavy database
workloads. There are similarities and differences in the implementations,
because they leverage native engine features. See the following table for
details.
Feature
|
PostgreSQL
|
MySQL
|
Maximum
Read Replicas allowed per source DB Instance
|
5
|
5
|
Replication
method
|
Asynchronous
Physical |
Asynchronous
Logical |
Must
automatic backups be enabled for Read Replica support?
|
Yes
|
Yes
|
Engine versions
for which Read Replicas are available
|
9.3.5 or later
|
5.6 or later
|
Promotion
of Read Replica to a new standalone DB Instance
|
Supported
|
Supported
|
Creation
of Indexes on Read Replica
|
Currently not supported
|
Supported
|
Creation
of Backups of Read Replicas
|
Currently not supported
|
Supported
|
Chaining
of Read Replicas
(i.e., Read Replicas of Read Replicas) |
Currently not supported
|
Supported
|
Cross-Region
Read Replicas
|
Supported
|
Supported
|
For information
about replication support with the Amazon Aurora engine, see the Amazon RDS for
Aurora FAQ.
A: Enhanced Monitoring for RDS gives you deeper visibility into the
health of your RDS instances. Just turn on the “Enhanced Monitoring” option for
your RDS instance and set a granularity and Enhanced Monitoring will collect
vital operating system metrics and process information, at the defined
granularity.
Q: Which metrics and processes can I
monitor in Enhanced Monitoring?
A: Enhanced Monitoring captures your RDS instance system level metrics
such as the CPU, memory, file system and disk I/O among others. The complete
list of metrics can be found here.
Q: Which engines are supported by
Enhanced Monitoring?
A: Enhanced Monitoring supports all RDS database engines.
Q: Which instance types are supported by
Enhanced Monitoring?
A: Enhanced Monitoring supports every instance type except t1.micro and
m1.small. The software uses a small amount of CPU, memory and I/O and for
general purpose monitoring, we recommend switching on higher granularities for
instances that are medium or larger. The default setting for Enhanced
Monitoring is “off”, and you have the choice of leaving it disabled or
modifying the granularity when it is on.
Q: What information can I view on the RDS
dashboard?
A: You can view all the system metrics and process information for your
RDS instances in a graphical format on the console. You can manage which
metrics you want to monitor for each instance and customize the dashboard
according to your requirements.
Q: Will all the instances in my RDS
account sample metrics at the same granularity?
A: No. You can set different granularities for each instance in your RDS
account. You can also choose the instances on which you want to enable Enhanced
Monitoring as well as modify the granularity of any instance whenever you want.
Q: How far back can I see the historical
metrics on the RDS console?
A: You can see the performance values for all the metrics for up to 1
hour ago, at a granularity of up to 1 second based on your setting.
Q: How can I visualize the metrics
generated by RDS Enhanced Monitoring in CloudWatch?
A: The metrics from RDS Enhanced Monitoring are delivered into your
CloudWatch Logs account. You can create metrics filters in CloudWatch from
CloudWatch Logs and display the graphs on the CloudWatch dashboard. For more
details, please visit the Amazon CloudWatch page.
Q: When should I use CloudWatch instead
of the RDS console dashboard?
A: You should use CloudWatch if you want to view historical data beyond what
is available on the RDS console dashboard. You can monitor your RDS instances
in CloudWatch to diagnose the health of your entire AWS stack in a single
location. Currently, CloudWatch supports granularities of up to 1 minute and
the values will be averaged out for granularities less than that.
Q: Can I set up alarms and notifications
based on specific metrics?
A: Yes. You can create an alarm in CloudWatch that sends a notification
when the alarm changes state. The alarm watches a single metric over a time
period that you specify, and performs one or more actions based on the value of
the metric relative to the specified threshold over a number of time periods.
For more details on CloudWatch alarms, please visit the Amazon CloudWatch Developer Guide.
Q: How do I integrate Enhanced Monitoring
with my tool that I currently use?
A: RDS Enhanced Monitoring provides a set of metrics formed as JSON
payloads which are delivered into your CloudWatch Logs account. The JSON
payloads are delivered at the granularity last configured for the RDS instance.
There are two 2 ways you can consume the metrics via a third-party
dashboard or application. Monitoring tools can use CloudWatch Logs Subscriptions to set up a near real time feed for the metrics. Alternatively, you can
use filters in CloudWatch Logs to bridge metrics across to CloudWatch to and
integrate your application with CloudWatch. Please visit Amazon CloudWatch Documentation for more details.
Q: How can I delete historical data?
A: Since Enhanced Monitoring delivers JSON payloads into a log in your
CloudWatch Logs account, you can control its retention period just like any
other CloudWatch Logs stream. The default retention period configured for
Enhanced Monitoring in CloudWatch Logs is 30 days. For details on how to change
retention settings, please visit Amazon CloudWatch Developer Guide.
Q: What impact does Enhanced Monitoring
have on my monthly bills?
A: Since the metrics are ingested into CloudWatch Logs, your charges
will be based on CloudWatch Logs data transfer and storage rates once you
exceed CloudWatch Logs free tier. Pricing details can be found here. The amount of information transferred for an RDS instance is directly
proportional to the defined granularity for the Enhanced Monitoring feature.
Administrators can set different granularities for different instances in their
accounts to manage costs.
The approximate
volume of data ingested into CloudWatch Logs by Enhanced Monitoring for an
instance is as shown below:
Granularity
|
60 seconds
|
30 seconds
|
15 seconds
|
10 seconds
|
5 seconds
|
1 second
|
Data ingested in CloudWatch Logs* (GB per month)
|
0.27
|
0.53
|
1.07
|
1.61
|
3.21
|
16.07
|
MySQL
Q:
Can I control if and when the MySQL version powering Amazon RDS DB Instance is
upgraded to new supported versions?
Amazon RDS allows
you to control if and when the relational database software powering your DB
Instance (i.e. MySQL) is upgraded to new versions supported by Amazon RDS. This
provides you with the flexibility to maintain compatibility with specific MySQL
versions, test new versions with your application before deploying in
production, and perform version upgrades on your own terms and timelines.
Unless you specify
otherwise, your DB Instance will automatically be upgraded to new MySQL minor versions as they are supported by Amazon RDS. This patching will occur
during your scheduled maintenance window, and will be announced on the Amazon RDS Forum in advance. We schedule them so you can plan around them, because
downtime is required to upgrade a DB engine version, even for Multi-AZ
instances. If you wish to turn off automatic version upgrades, you can do so by
setting the AutoMinorVersionUpgrade parameter to “false.” Since major version
upgrades involve some compatibility risk, they will not occur automatically and
must be initiated by you.
This approach to
database software patching puts you in the driver’s seat of version upgrades,
but still offloads the work of patch application to Amazon RDS. You can learn
more about version management by reading the FAQ entires that follow.
Alternatively, you can reference our Developer Guide.
While DB Engine
version management functionality is intended to give you as much control as
possible over how patching occurs, Amazon RDS reserves the right to patch your
DB Instance on your behalf in the event of a critical security vulnerability in
the database software.
You can specify any
currently supported version (minor and/or major) when creating a
new DB Instance via the CreateDBInstance API. You simply pass in the desired
version to the EngineVersion parameter upon create; if no version is specified,
Amazon RDS will default to a supported version, typically the most recent
version. If a major version (e.g. MySQL 5.1) is specified but a minor version
is not, Amazon RDS will default to a recent release of the major version you
have specified. To see a list of supported versions, as well as defaults for
newly created DB Instances, simply use the DescribeDBEngineVersions API.
If you have opted
out of automatically scheduled upgrades by setting the AutoMinorVersionUpgrade
parameter to false but wish to manually initiate an upgrade to a supported
minor version or major version release, you can do so using the
ModifyDBInstance API. Simply specify the version you wish to upgrade to via the
EngineVersion parameter. The upgrade will then be applied on your behalf either
immediately (if the ApplyImmediately flag is set to true) or during the next
scheduled maintenance window for your DB Instance.
Yes. You can do so
by creating a DB Snapshot of your existing DB Instance, restoring from the DB
Snapshot to create a new DB Instance, and then initiating a version upgrade for
the new DB Instance. You can then experiment safely on the upgraded clone of
your DB Instance before deciding whether or not to upgrade your original DB
Instance.
In the context of
MySQL, version numbers are organized as follows:
MySQL version =
X.Y.Z
X = Major version,
Y = Release level, Z = Version number within release series.
From the Amazon RDS
standpoint, a version change would be considered major if either major version or release level is being changed. Example:
going from 5.1.X -> 5.5.X. A version change would be considered minor if the version number within the release is being changed. Example:
going from 5.1.45 -> 5.1.49.
As of today, Amazon
RDS supports the MySQL major versions MySQL 5.1, 5.5 and 5.6. We plan to
support additional MySQL major versions in the future.
Q: Does Amazon RDS provide guidelines for
supporting new MySQL version releases and/or deprecating MySQL versions that
are currently supported?
The
Point-In-Time-Restore and Snapshot Restore features of Amazon RDS for MySQL
require a crash-recoverable storage engine and are supported for InnoDB storage
engine only. While MySQL supports multiple storage engines with varying
capabilities, not all of them are optimized for crash recovery and data
durability. For example, MyISAM storage engine does not support reliable crash
recovery and may result in lost or corrupt data when MySQL is restarted after a
crash, preventing Point-In-Time-Restore or Snapshot restore from working as
intended. However, if you still choose to use MyISAM with Amazon RDS, following these steps may be helpful in certain scenarios for Snapshot Restore functionality.
If you would like
to convert existing MyISAM tables to InnoDB tables, you can use an alter table
command (e.g., alter table TABLE_NAME engine=innodb;). Please bear in mind that
MyISAM and InnoDB have different strengths and weaknesses, so you should fully
evaluate the impact of making this switch on your applications before doing so.
Federated Storage Engine is currently not supported by Amazon RDS for
MySQL.
There are two types
of licensing options available for using Amazon RDS for Oracle:
·
Bring Your Own License (BYOL): In this licensing
model, you can use your existing Oracle Database licenses to run Oracle
deployments on Amazon RDS. To run a DB Instance under the BYOL model, you must
have the appropriate Oracle Database license (with Software Update License
& Support) for the DB Instance class and Oracle Database edition you wish
to run. You must also follow Oracle's policies for licensing Oracle Database
software in the cloud computing environment. DB Instances reside in the Amazon
EC2 environment, and Oracle's licensing policy for Amazon EC2 is located here.
·
License Included: In the "License Included" service model, you do not need
separately purchased Oracle licenses; the Oracle Database software has been
licensed by AWS. "License Included" pricing is inclusive of software,
underlying hardware resources, and Amazon RDS management capabilities.
Amazon RDS
currently supports the following Oracle Database Editions under each of the
licensing models below:
·
BYOL: Standard Edition Two (SE2), Standard Edition One (SE1), Standard Edition
(SE), and Enterprise Edition (EE)
·
License Included: Standard Edition One (SE1), and Standard Edition Two (SE2)
·
BYOL: To run a DB Instance under the BYOL model, you must have the appropriate
Oracle Database license (with Software Update License & Support) for the DB
Instance class and Oracle Database edition you wish to run. You must follow
Oracle's policies for licensing Oracle Database software in the cloud computing
environment. DB Instances reside in the Amazon EC2 environment, and Oracle's
licensing policy for Amazon EC2 is located here.
·
License Included: In the "License Included" service model, you do not need
separately purchased Oracle licenses; the Oracle Database software has been
licensed by AWS.
·
BYOL: Under this model, you will continue to use your active Oracle support
account and contact Oracle directly for Oracle Database specific service
requests. If you have an active AWS Premium Support account, you can contact
AWS Premium Support for Amazon RDS specific issues. Amazon Web Services and
Oracle have multi-vendor support process for cases which require assistance
from both organizations.
·
License Included: In this model, if you have an active AWS Premium Support account, you
should contact AWS Premium Support for both Amazon RDS and Oracle Database
specific service requests.
Yes, you can change your license options. However, you will need to
delete your current DB Instance with a final snapshot and create a new DB
Instance from that snapshot specifying the new licensing option you need.
DB Engine Version Management
In the context of Oracle, Amazon RDS DB Engine Versions are organized as
follows:
DB Engine Versions for Oracle = X.Y.Z
X = Major version (for ex: 11.2), Y = Release level (for ex: 0.2), Z =
version number within release series (for ex: v2). For example, a DB Engine
version for Oracle could be 11.2.0.2.v2
Oracle releases Database Patch Set Updates (PSU) for supported release
levels on a quarterly basis. (e.g. 11.2.0.2.1). The PSUs include security fixes
and additional non-security fixes recommended by Oracle.
The Amazon RDS DB Engine Versions are built with a given PSU as a
baseline and may contain additional fixes beyond it.
From the Amazon RDS standpoint, a version change would be considered major if either major
version or release level is being changed. Example: going from 11.2.0.2.Z ->
11.2.0.4.Z. A version change would be considered minor if the version
number within the release is being changed. Example: going from 11.2.0.2.v2
-> 11.2.0.2.v3.
As of today, Amazon RDS supports major versions 11.2 (11g Release 2) and
12c. We plan to support additional major versions in the future.
Refer to the Amazon RDS User Guide for details of the patch set composition of each DB Engine Version of
Oracle.
Amazon RDS allows you to control if and when the relational database
software powering your DB Instance is upgraded to new versions supported by
Amazon RDS. This provides you with the flexibility to maintain compatibility
with specific Oracle database versions, test new versions with your application
before deploying in production, and perform version upgrades on your own terms
and timelines.
Unless you specify otherwise, your DB Instance will automatically be
upgraded to new DB Engine Versions when minor version upgrades are scheduled by
Amazon RDS. This patching will occur during your scheduled maintenance window, and will be announced on theAmazon RDS Forum in advance. If you wish to turn off automatic version upgrades, you can
do so by setting the "Auto Minor Version Upgrade" field to
"No". Since major version upgrades involve some compatibility risk,
they will not occur automatically and must be initiated by you.
This approach to database software patching puts you in the driver’s
seat of version upgrades, but still offloads the work of patch application to
Amazon RDS. You can learn more about version management by reading the FAQ
entires that follow. Alternatively, you can reference our Developer Guide.
While DB Engine version management functionality is intended to give you
as much control as possible over how patching occurs, Amazon RDS may patch your
DB Instance on your behalf in the event of a critical security vulnerability in
the database software.
In the "License Included" model, the cost of the
"Software Update License" is embedded in the hourly price, enabling
access to Oracle Database software updates. However, under the BYOL model, you
should have "Software Update License & Support" from Oracle to
use Amazon RDS for Oracle Database.
You can specify any currently supported version (minor and/or major) when creating a new DB Instance via
the "Launch DB Instance" option in the AWS Management Console or the
CreateDBInstance API.
If you have opted out of automatically scheduled upgrades by setting the
AutoMinorVersionUpgrade parameter to false but wish to manually initiate an
upgrade to a supported minor version or major version release, you can do so
using the ModifyDBInstance API. Simply specify the version you wish to upgrade
to via the EngineVersion parameter. The upgrade will then be applied on your
behalf either immediately (if the "Apply Immediately" flag is set) or
during the next scheduled maintenance window for your DB Instance.
Yes. You can do so by creating a DB Snapshot of your existing DB
Instance, restoring from the DB Snapshot to create a new DB Instance, and then
initiating a version upgrade for the new DB Instance. You can then experiment
safely on the upgraded clone of your DB Instance before deciding whether or not
to upgrade your original DB Instance.
Q: Does Amazon RDS provide guidelines for
supporting new DB Engine Versions for Oracle and/or deprecating DB Engine
Versions for Oracle that are currently supported?
For the BYOL model, you may scale your DB Instances in accordance with
the terms of your Oracle license(s).
For the License Included model, DB Instances running Oracle may be
scaled up and down at any point, subject to the prevailing hourly pricing for
each DB Instance class.
For more information on the scaling implications of Reserved DB
Instances, see our Reserved DB
Instance FAQ.
Q: Can I change the Oracle edition I'm
running for a DB Instance (e.g. from Oracle 11g R2 SE1 to EE)?
For the BYOL model, you can migrate from one edition of Oracle software
to another as long as you possess an unused Oracle license appropriate for the edition
and class of DB Instance you plan to run. To change the edition and retain your
data, you should take a snapshot of your running DB Instance and then create a
new DB Instance of the desired edition from that snapshot. You should then
delete the old DB Instance, unless you wish to keep it running and have the
appropriate Oracle Database licenses.
For the License
Included model, currently, only Oracle Standard Edition One is supported.
Amazon RDS for Oracle supports Multi-AZ
deployments for both the License Included and Bring Your Own License (BYOL)
licensing models.
Oracle Data Guard is a High Availability feature available for
Enterprise Edition of Oracle database. Amazon RDS currently uses a different
synchronous replication technology and automatic failover functionality to
provide Multi-AZ deployments for Oracle DB Instances. Multi-AZ deployments are
available for all Oracle database editions supported by Amazon RDS.
Q: Will I need an
additional license(s) if I use Multi-AZ deployments for my Oracle DB Instances
under the "BYOL" licensing model?
Yes, we expect that you will need to use twice as many licenses for
Multi-AZ deployments as you would for a corresponding Single-AZ deployment to
account for the stand by DB Instance. However, you should review your Oracle
Software Licensing Agreement and comply with Oracle’s licensing policies.
No, RAC is not currently supported.
Following Enterprise Edition Options are currently supported under the
BYOL model:
·
Advanced Security (Transparent Data
Encryption, Native Network Encryption)
·
Partitioning
·
Management Packs (Diagnostic, Tuning)
·
Advanced Compression
·
Total Recall
Amazon RDS supports the thirty character sets in the Oracle
"Recommended ASCII Database Character Sets" list. You can specify
your desired character set when creating a new database instance. This is
optional and the default character set is AL32UTF8. For more information,
please refer to the Amazon RDS Documentation.
Q: Who manages the
Oracle Wallet and Master Encryption Key when using Transparent Data Encryption
on Amazon RDS?
Amazon RDS manages the Oracle Wallet and Master Encryption Key for the
DB Instance.
Oracle Database
supports a number of features that vary with the edition of Oracle database you run. Refer to the Amazon RDS User Guide to know about the Oracle features that Amazon RDS currently supports.
Very informative blog... This post share complete information on RDS. All FAQ is helpful to understand all aspects of RDS and RDS snapshots. Thanks
ReplyDeleteThanks for visiting my blog....
DeleteAwesome post presented by you..your writing style is fabulous and keep update with your blogs AWS Online Course
ReplyDeleteThank you very much
DeleteThanks for posting. Its an important topic to be read.
ReplyDeleteAmazon Web Services Online Training
Monitoring the database environment, its applications, and any systems it contains will ensure the highest level of availability possible. You won't find a better Calgary IT support partner than GenexDBS. As a result of our computer networking and technical support
ReplyDeletehttps://genexdbs.com/
