Virtual Private Cloud (VPC) Step By Step Process
Ø Create Subnet
Ø Create Route Tables
Ø Create Internet Gateways
Ø Create NAT Gateways
Ø Create Endpoints
Q. What is Amazon Virtual Private Cloud
(Amazon VPC)?
Amazon VPC lets you provision a logically isolated section of the Amazon
Web Services (AWS) cloud where you can launch AWS resources in a virtual
network that you define. You have complete control over your virtual networking
environment, including selection of your own IP address range, creation of
subnets, and configuration of route tables and network gateways. You can also
create a hardware Virtual Private Network (VPN) connection between your
corporate datacenter and your VPC and leverage the AWS cloud as an extension of
your corporate datacenter.
You can easily
customize the network configuration for your Amazon VPC. For example, you can
create a public-facing subnet for your web servers that have access to the
Internet, and place your backend systems such as databases or application
servers in a private-facing subnet with no Internet access. You can leverage
multiple layers of security, including security groups and network access
control lists, to help control access to Amazon EC2 instances in each subnet.
Q. What are the components of Amazon VPC?
Amazon VPC comprises a variety of objects that will be familiar to
customers with existing networks:
·
A Virtual Private Cloud (VPC): A logically
isolated virtual network in the AWS cloud. You define a VPC’s IP address space
from a range you select.
·
Subnet: A segment of a VPC’s IP address range where you
can place groups of isolated resources.
·
Internet Gateway: The Amazon VPC side of a connection
to the public Internet.
·
NAT Gateway: A highly available, managed Network
Address Translation (NAT) service for your resources in a private subnet to
access the Internet.
·
Hardware VPN Connection: A hardware-based VPN connection
between your Amazon VPC and your data center, home network, or co-location
facility.
·
Virtual Private Gateway: The Amazon VPC side of a VPN
connection.
·
Customer Gateway: Your side of a VPN connection.
·
Router: Routers interconnect subnets and direct traffic
between Internet gateways, virtual private gateways, NAT gateways, and subnets.
·
Peering Connection: A peering connection enables you to
route traffic via private IP addresses between two peered VPCs.
·
VPC Endpoint for S3: Enables Amazon S3 access from within
your VPC without using an Internet gateway or NAT, and allows you to control
the access using VPC endpoint policies.
Q. Why should I use Amazon VPC?
Amazon VPC enables
you to build a virtual network in the AWS cloud - no VPNs, hardware, or
physical datacenters required. You can define your own network space and
control how your network, and the Amazon EC2 resources inside your network, is
exposed to the Internet. You can also leverage the greatly enhanced security
options in Amazon VPC to provide more granular access both to and from the
Amazon EC2 instances in your virtual network.
Q. How do I get started with Amazon VPC?
Your AWS resources are automatically provisioned in a ready-to-use

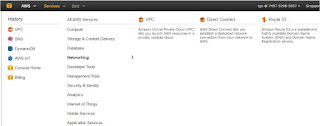

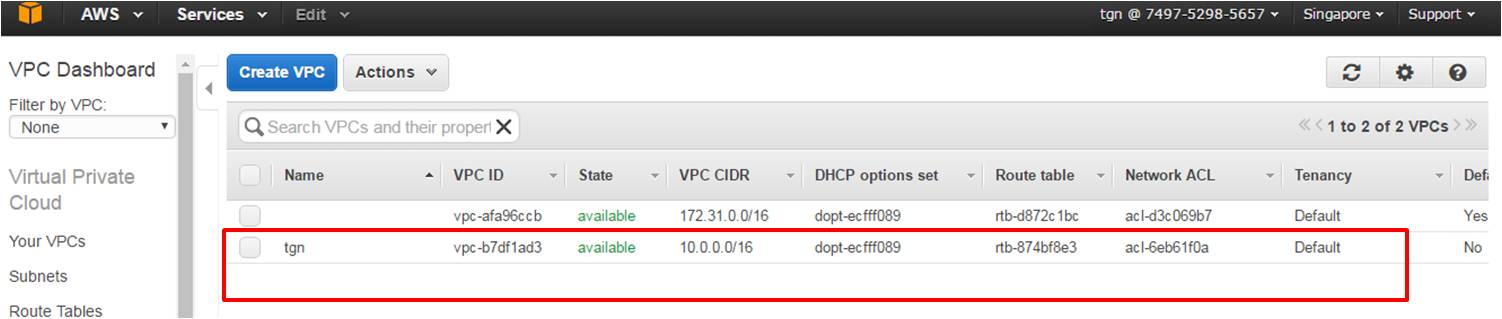

default VPC. You can choose to create additional VPCs by going to the Amazon
VPC page in the AWS Management Console and selecting "Start VPC
Wizard".
You’ll be presented with four basic options for network architectures.
After selecting an option, you can modify the size and IP address range of the
VPC and its subnets. If you select an option with Hardware VPN Access, you will
need to specify the IP address of the VPN hardware on your network. You can
modify the VPC to add more subnets or add or remove gateways at any time after
the VPC has been created.
The four options are:
1. VPC with a Single Public Subnet Only
2. VPC with Public and Private Subnets
3. VPC with Public and Private Subnets and Hardware VPN Access
4.
VPC with a Private Subnet Only and
Hardware VPN Access
Q. How will I be charged and billed for
my use of Amazon VPC?
There are no
additional charges for creating and using the VPC itself. Usage charges for
other Amazon Web Services, including Amazon EC2, still apply at published rates
for those resources, including data transfer charges. If you connect your VPC
to your corporate datacenter using the optional hardware VPN connection,
pricing is per VPN connection-hour (the amount of time you have a VPN
connection in the "available" state.) Partial hours are billed as
full hours. Data transferred over VPN connections will be charged at standard
AWS Data Transfer rates. For VPC-VPN pricing information, please visit the
pricing section of the Amazon VPC product
page.
Q. What defines billable VPN
connection-hours?
VPN
connection-hours are billed for any time your VPN connections are in the
"available" state. You can determine the state of a VPN connection
via the AWS Management Console, CLI, or API. If you no longer wish to use your
VPN connection, you simply terminate the VPN connection to avoid being billed
for additional VPN connection-hours.
Q. What usage charges will I incur if I
use other AWS services, such as Amazon S3, from Amazon EC2 instances in my VPC?
Usage charges for other Amazon Web Services, including Amazon EC2, still
apply at published rates for those resources. Data transfer charges are not
incurred when accessing Amazon Web Services, such as Amazon S3, via your VPC’s
Internet gateway.
If you access AWS
resources via your VPN connection, you will incur Internet data transfer charges.
Q: Do your prices include taxes?
Except as otherwise
noted, our prices are exclusive of applicable taxes and duties, including VAT
and applicable sales tax. For customers with a Japanese billing address, use of
the Asia Pacific (Tokyo) region is subject to Japanese Consumption Tax.
Q. What are the connectivity options for
my VPC?
You may connect your VPC to:
·
The Internet (via an Internet
gateway)
·
Your corporate data center using a
Hardware VPN connection (via the virtual private gateway)
·
Both the Internet and your corporate
data center (utilizing both an Internet gateway and a virtual private gateway)
·
Other AWS services (via Internet
gateway, NAT, virtual private gateway, or VPC endpoints)
·
Other VPCs (via VPC peering
connections)
Q. How do I connect my VPC to the
Internet?

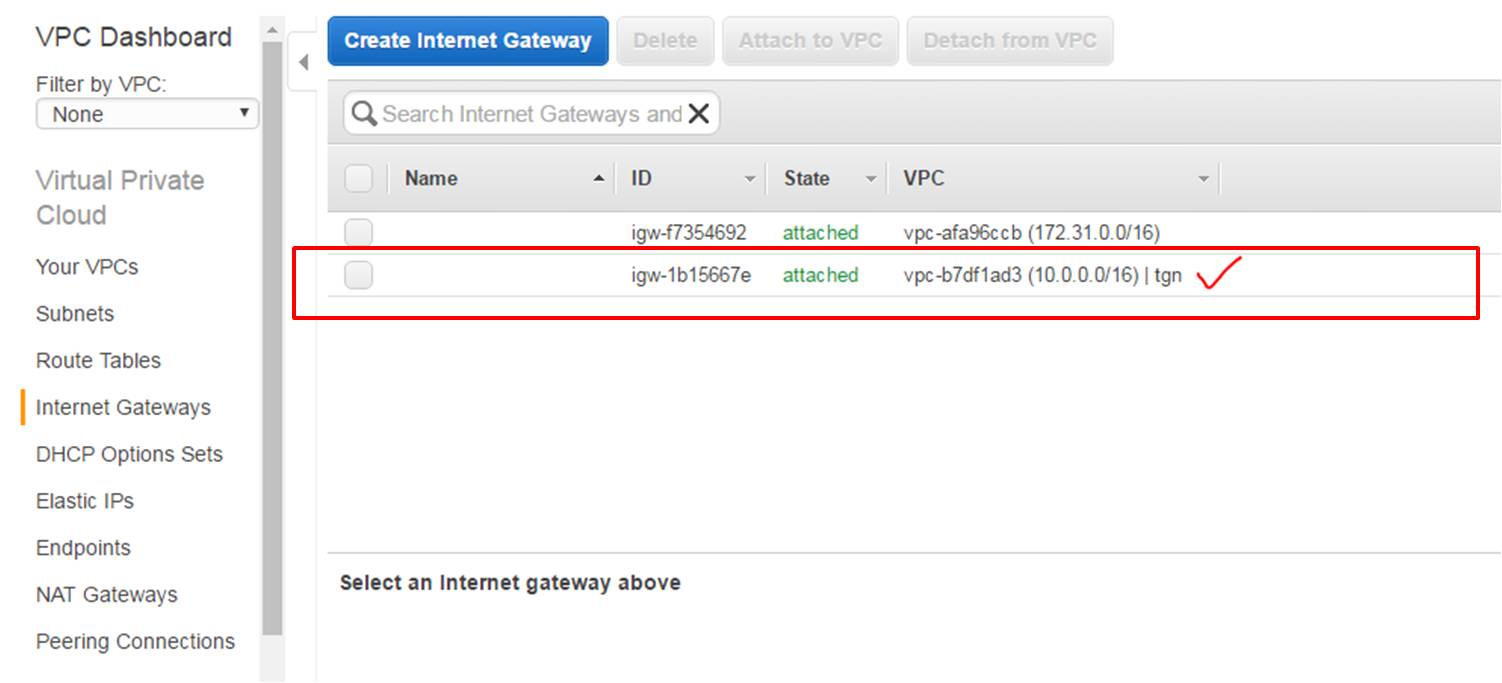

Amazon VPC supports
the creation of an Internet gateway. This gateway enables Amazon EC2 instances
in the VPC to directly access the Internet.
Q. Are there any bandwidth limitations
for Internet gateways? Do I need to be concerned about its availability? Can it
be a single point of failure?
No. An Internet gateway is horizontally-scaled, redundant, and highly
available. It imposes no bandwidth constraints.
Q. How do instances in a VPC access the
Internet?
You can use public
IP addresses, including Elastic IP addresses (EIPs), to give instances in the
VPC the ability to both directly communicate outbound to the Internet and to
receive unsolicited inbound traffic from the Internet (e.g., web
servers). You can also use the solutions in the next question.
Q. How do instances without public IP
addresses access the Internet?
Instances without public IP addresses can access the Internet in one of
two ways:
1. Instances without public IP addresses can route their traffic through a
NAT gateway or a NAT instance to access the Internet. These instances use the
public IP address of the NAT gateway or NAT instance to traverse the Internet.
The NAT gateway or NAT instance allows outbound communication but doesn’t allow
machines on the Internet to initiate a connection to the privately addressed
instances.
2.
For VPCs with a hardware VPN
connection or Direct Connect connection, instances can route their Internet
traffic down the virtual private gateway to your existing datacenter. From
there, it can access the Internet via your existing egress points and network
security/monitoring devices.
Q. Can I connect to my VPC using a
software VPN?
Yes. You may use a
third-party software VPN to create a site to site or remote access VPN
connection with your VPC via the Internet gateway.
Q. How does a hardware VPN connection
work with Amazon VPC?
A hardware VPN
connection connects your VPC to your datacenter. Amazon supports Internet
Protocol security (IPsec) VPN connections. Data transferred between your VPC
and datacenter routes over an encrypted VPN connection to help maintain the
confidentiality and integrity of data in transit. An Internet gateway is not
required to establish a hardware VPN connection.
Q. What is IPsec?
IPsec is a protocol suite for securing Internet Protocol (IP) communications
by authenticating and encrypting each IP packet of a data stream.
Q. Which customer gateway devices can I
use to connect to Amazon VPC?
There are two types of VPN connections that you can create:
statically-routed VPN connections and dynamically-routed VPN connections.
Customer gateway devices supporting statically-routed VPN connections must be
able to:
·
Establish IKE Security Association
using Pre-Shared Keys
·
Establish IPsec Security Associations
in Tunnel mode
·
Utilize the AES 128-bit or 256-bit
encryption function
·
Utilize the SHA-1 or SHA-2 (256)
hashing function
·
Utilize Diffie-Hellman (DH) Perfect
Forward Secrecy in "Group 2" mode, or one of the additional DH groups
we support
·
Perform packet fragmentation prior to
encryption
In addition to the above capabilities, devices supporting
dynamically-routed VPN connections must be able to:
·
Establish Border Gateway Protocol
(BGP) peerings
·
Bind tunnels to logical interfaces
(route-based VPN)
·
Utilize IPsec Dead Peer Detection
We support the following Diffie-Hellman (DH) groups
in Phase1 and Phase2.
·
Phase1 DH groups 2, 14-18, 22, 23, 24
·
Phase2 DH groups 1, 2, 5, 14-18, 22,
23, 24
Q. What customer gateway devices are
known to work with Amazon VPC?
The following devices meeting the aforementioned requirements are known
to work with hardware VPN connections, and have support in the command line
tools for automatic generation of configuration files appropriate for your
device:
·
Statically-routed VPN connections
·
Dynamically-routed VPN connections
(requires BGP)
o Palo Alto Networks PA Series running PANOS 4.1.2 (or later) software
Please note, these sample configurations are for the minimum requirement
of AES128, SHA1, and DH Group 2. You will need to modify these sample configuration
files to take advantage of AES256, SHA256, or other DH groups.
Q. If my device is not listed, where can
I go for more information about using it with Amazon VPC?
Q. Are there any VPN connection
throughput limitations?
Amazon does not
enforce any restrictions on VPN throughput. However, other factors, such as the
cryptographic capability of your customer gateway, the capacity of your
Internet connection, average packet size, the protocol being used (TCP vs.
UDP), and the network latency between your customer gateway and the virtual
private gateway can affect throughput.
Q. What tools are available to me to help
troubleshoot my Hardware VPN configuration?
The
DescribeVPNConnection API displays the status of the VPN connection, including
the state ("up"/"down") of each VPN tunnel and
corresponding error messages if either tunnel is "down". This
information is also displayed in the AWS Management Console.
Q. How do I connect a VPC to my corporate
datacenter?
Establishing a
hardware VPN connection between your existing network and Amazon VPC allows you
to interact with Amazon EC2 instances within a VPC as if they were within your
existing network. AWS does not perform network address translation (NAT) on Amazon EC2 instances within a VPC accessed via a hardware VPN
connection.
Q. Can I NAT my CGW behind a router or
firewall?
Yes, you will need
to enable NAT-T and open UDP port 4500 on your NAT device.
Q. What IP address do I use for my CGW
address?
You will use the
public IP address of your NAT device.
Q. How does my connection decide to use
NAT-T?
If your device has
NAT-T enabled on the tunnel, AWS will use it by default. You will need to open
UDP port 4500 or else the tunnel will not establish.
Q. How do I disable NAT-T on my
connection?
You will need to
disable NAT-T on your device. If you don’t plan on using NAT-T and it is not
disabled on your device, we will attempt to establish a tunnel over UDP port
4500. If that port is not open the tunnel will not establish.
Q. I would like to have multiple CGWs
behind a NAT, what do I need to do to configure that?
You will use the
public IP address of your NAT device for the CGW for each of your connections.
You will also need to make sure UDP port 4500 is open.
Q. How many IPsec security
associations can be established concurrently per tunnel?
The AWS VPN service
is a route-based solution, so when using a route-based configuration you will
not run into SA limitations. If, however, you are using a policy-based solution
you will need to limit to a single SA, as the service is a route-based
solution.
Q. What IP address ranges can I use
within my VPC?
You can address
your VPC from any IPv4 address range, including RFC 1918 or publicly routable IP blocks. Publicly routable IP blocks are only
reachable via the Virtual Private Gateway and cannot be accessed over the
Internet through the Internet gateway. AWS does not advertise customer-owned IP
address blocks to the Internet. Additionally, VPCs currently cannot be
addressed from IPv6 IP address ranges.
Q. How do I assign IP address ranges to
VPCs?
You assign a single Classless Internet Domain Routing
(CIDR) IP address block
when you create a VPC. Subnets within a VPC are addressed from this range by
you. A VPC can be assigned at most one (1) IP address range at any given time;
addressing a VPC from multiple IP address ranges is currently not supported.
Please note that while you can create multiple VPCs with overlapping IP address
ranges, doing so will prohibit you from connecting these VPCs to a common home
network via the hardware VPN connection. For this reason we recommend using
non-overlapping IP address ranges.
Q. What IP address ranges are assigned to
a default VPC?
Default VPCs are
assigned a CIDR range of 172.31.0.0/16. Default subnets within a default VPC
are assigned /20 netblocks within the VPC CIDR range.
Q. Can I advertise my VPC public IP
address range to the Internet and route the traffic through my datacenter, via
the hardware VPN, and to my VPC?
Yes, you can route
traffic via the hardware VPN connection and advertise the address range from
your home network.
Q. How large of a VPC
can I create?
Currently, Amazon
VPC supports VPCs between /28 (in CIDR notation) and /16 in size. The IP
address range of your VPC should not overlap with the IP address ranges of your
existing network.
Q. Can I change a VPC's size?
No. To change the
size of a VPC you must terminate your existing VPC and create a new one.
Q. How many subnets can I create per VPC?
Currently you can
create 200 subnets per VPC. If you would like to create more, please submit a case at the support center.
Q. Is there a limit on how large or small
a subnet can be?
The minimum size of
a subnet is a /28 (or 14 IP addresses.) Subnets cannot be larger than the VPC
in which they are created.
Q. Can I use all the IP addresses that I
assign to a subnet?
No. Amazon reserves
the first four (4) IP addresses and the last one (1) IP address of every subnet
for IP networking purposes.
Q. How do I assign private IP addresses
to Amazon EC2 instances within a VPC?
When you launch an
Amazon EC2 instance within a VPC, you may optionally specify the primary
private IP address for the instance. If you do not specify the primary private
IP address, AWS automatically addresses it from the IP address range you assign
to that subnet. You can assign secondary private IP addresses when you launch
an instance, when you create an Elastic Network Interface, or any time after
the instance has been launched or the interface has been created.
Q. Can I change the private IP addresses
of an Amazon EC2 instance while it is running and/or stopped within a VPC?
Primary private IP
addresses are retained for the instance's or interface's lifetime. Secondary
private IP addresses can be assigned, unassigned, or moved between interfaces
or instances at any time.
Q. If an Amazon EC2 instance is stopped
within a VPC, can I launch another instance with the same IP address in the
same VPC?
No. An IP address
assigned to a running instance can only be used again by another instance once
that original running instance is in a “terminated” state.
Q. Can I assign IP addresses for multiple
instances simultaneously?
No. You can specify
the IP address of one instance at a time when launching the instance.
Q. Can I assign any IP address to an
instance?
You can assign any IP address to your instance as long as it is:
·
Part of the associated subnet's IP
address range
·
Not reserved by Amazon for IP
networking purposes
·
Not currently assigned to another
interface
Q. Can I assign multiple IP addresses to
an instance?
Yes. You can assign
one or more secondary private IP addresses to an Elastic Network Interface or
an EC2 instance in Amazon VPC. The number of secondary private IP addresses you
can assign depends on the instance type. See the EC2 User Guide for more information on the number of secondary private IP addresses
that can be assigned per instance type.
Q. Can I assign one or more Elastic IP
(EIP) addresses to VPC-based Amazon EC2 instances?
Yes, however, the
EIP addresses will only be reachable from the Internet (not over the VPN
connection). Each EIP address must be associated with a unique private IP
address on the instance. EIP addresses should only be used on instances in
subnets configured to route their traffic directly to the Internet gateway.
EIPs cannot be used on instances in subnets configured to use a NAT gateway or
a NAT instance to access the Internet.
Q. What does an Amazon VPC router do?
An Amazon VPC
router enables Amazon EC2 instances within subnets to communicate with Amazon
EC2 instances in other subnets within the same VPC. The VPC router also enables
subnets, Internet gateways, and virtual private gateways to communicate with
each other. Network usage data is not available from the router; however, you
can obtain network usage statistics from your instances using Amazon
CloudWatch.
Q. Can I modify the VPC route tables?
Yes. You can create
route rules to specify which subnets are routed to the Internet gateway, the
virtual private gateway, or other instances.
Q. Can I specify which subnet will use
which gateway as its default?
Yes. You may create
a default route for each subnet. The default route can direct traffic to egress
the VPC via the Internet gateway, the virtual private gateway, or the NAT
gateway.
No.
Q. How do I secure Amazon EC2 instances
running within my VPC?
Amazon EC2 security groups can be used to help secure instances within
an Amazon VPC. Security groups in a VPC enable you to specify both inbound and
outbound network traffic that is allowed to or from each Amazon EC2 instance.
Traffic which is not explicitly allowed to or from an instance is automatically
denied.
In addition to
security groups, network traffic entering and exiting each subnet can be
allowed or denied via network Access Control Lists (ACLs).
Q. What are the differences between
security groups in a VPC and network ACLs in a VPC?
Security groups in
a VPC specify which traffic is allowed to or from an Amazon EC2 instance.
Network ACLs operate at the subnet level and evaluate traffic entering and
exiting a subnet. Network ACLs can be used to set both Allow and Deny rules.
Network ACLs do not filter traffic between instances in the same subnet. In
addition, network ACLs perform stateless filtering while security groups
perform stateful filtering.
Q. What is the difference between
stateful and stateless filtering?
Stateful filtering tracks the origin of a request and can automatically
allow the reply to the request to be returned to the originating computer. For
example, a stateful filter that allows inbound traffic to TCP port 80 on a
webserver will allow the return traffic, usually on a high numbered port (e.g.,
destination TCP port 63, 912) to pass through the stateful filter between the
client and the webserver. The filtering device maintains a state table that
tracks the origin and destination port numbers and IP addresses. Only one rule
is required on the filtering device: Allow traffic inbound to the web server on
TCP port 80.
Stateless
filtering, on the other hand, only examines the source or destination IP
address and the destination port, ignoring whether the traffic is a new request
or a reply to a request. In the above example, two rules would need to be
implemented on the filtering device: one rule to allow traffic inbound to the
web server on TCP port 80, and another rule to allow outbound traffic from the
webserver (TCP port range 49, 152 through 65, 535).
Q. Within Amazon VPC, can I use SSH key
pairs created for instances within Amazon EC2, and vice versa?
Yes.
Q. Can Amazon EC2 instances within a VPC
communicate with Amazon EC2 instances not within a VPC?
Yes. If an Internet
gateway has been configured, Amazon VPC traffic bound for Amazon EC2 instances
not within a VPC traverses the Internet gateway and then enters the public AWS
network to reach the EC2 instance. If an Internet gateway has not been
configured, or if the instance is in a subnet configured to route through the
virtual private gateway, the traffic traverses the VPN connection, egresses
from your datacenter, and then re-enters the public AWS network.
Q. Can Amazon EC2 instances within a VPC
in one region communicate with Amazon EC2 instances within a VPC in another
region?
Yes, they can
communicate using public IP addresses, NAT gateway, NAT instances, VPN
connections, or Direct Connect connections.
Q. Can Amazon EC2 instances within a VPC
communicate with Amazon S3?
Yes. There are
multiple options for your resources within a VPC to communicate with Amazon S3.
You can use VPC Endpoint for S3, which makes sure all traffic remains within
Amazon's network and enables you to apply additional access policies to your
Amazon S3 traffic. You can use an Internet gateway to enable Internet access
from your VPC and instances in the VPC can communicate with Amazon S3. You can
also make all traffic to Amazon S3 traverse the Direct Connect or VPN
connection, egress from your datacenter, and then re-enter the public AWS
network.
Q. Why can’t I ping the router, or my
default gateway, that connects my subnets?
Ping (ICMP Echo
Request and Echo Reply) requests to the router in your VPC is not supported.
Ping between Amazon EC2 instances within VPC is supported as long as your
operating system's firewalls, VPC security groups, and network ACLs permit such
traffic.
Q. Can I monitor the network traffic in
my VPC?
Yes. You can use
the Amazon VPC Flow Logs feature to monitor the network traffic in your VPC.
Q. Within which Amazon EC2 region(s) is
Amazon VPC available?
Q. Can a VPC span multiple Availability
Zones?
Yes.
Q. Can a subnet span Availability Zones?
No. A subnet must
reside within a single Availability Zone.
Q. How do I specify which Availability
Zone my Amazon EC2 instances are launched in?
When you launch an
Amazon EC2 instance you must specify the subnet in which to launch the
instance. The instance will be launched in the Availability Zone associated
with the specified subnet.
Q. How do I determine which Availability
Zone my subnets are located in?
When you create a
subnet you must specify the Availability Zone in which to place the subnet.
When using the VPC Wizard, you can select the subnet's Availability Zone in the
wizard confirmation screen. When using the API or the CLI you can specify the
Availability Zone for the subnet as you create the subnet. If you don’t specify
an Availability Zone, the default "No Preference" option will be
selected and the subnet will be created in an available Availability Zone in
the region.
Q. Am I charged for network bandwidth
between instances in different subnets?
If the instances
reside in subnets in different Availability Zones, you will be charged $0.01
per GB for data transfer.
Q. When I call DescribeInstances(), do I
see all of my Amazon EC2 instances, including those in EC2-Classic and EC2-VPC?
Yes.
DescribeInstances() will return all running Amazon EC2 instances. You can
differentiate EC2-Classic instances from EC2-VPC instances by an entry in the
subnet field. If there is a subnet ID listed, the instance is within a VPC.
Q. When I call DescribeVolumes(), do I
see all of my Amazon EBS volumes, including those in EC2-Classic and EC2-VPC?
Yes.
DescribeVolumes() will return all your EBS volumes.
Q. How many Amazon EC2 instances can I
use within a VPC?
You can run any
number of Amazon EC2 instances within a VPC, so long as your VPC is
appropriately sized to have an IP address assigned to each instance. You are
initially limited to launching 20 Amazon EC2 instances at any one time and a
maximum VPC size of /16 (65,536 IPs). If you would like to increase these
limits, please complete the following form.
Q. Can I use my existing AMIs in Amazon
VPC?
You can use AMIs in
Amazon VPC that are registered within the same region as your VPC. For example,
you can use AMIs registered in us-east-1 with a VPC in us-east-1. More
information is available in the Amazon EC2 Region and Availability Zone FAQ.
Q. Can I use my existing Amazon EBS
snapshots?
Yes, you may use
Amazon EBS snapshots if they are located in the same region as your VPC. More
details are available in the Amazon EC2 Region and Availability Zone FAQ.
Q: Can I boot an Amazon EC2 instance from
an Amazon EBS volume within Amazon VPC?
Yes, however, an
instance launched in a VPC using an Amazon EBS-backed AMI maintains the same IP
address when stopped and restarted. This is in contrast to similar instances
launched outside a VPC, which get a new IP address. The IP addresses for any
stopped instances in a subnet are considered unavailable.
Q. Can I use Amazon EC2 Reserved
Instances with Amazon VPC?
Yes. You can
reserve an instance in Amazon VPC when you purchase Reserved Instances. When
computing your bill, AWS does not distinguish whether your instance runs in
Amazon VPC or standard Amazon EC2. AWS automatically optimizes which instances
are charged at the lower Reserved Instance rate to ensure you always pay the
lowest amount. However, your instance reservation will be specific to Amazon
VPC. Please see the Reserved Instances page for further details.
Q. Can I employ Amazon CloudWatch within
Amazon VPC?
Yes.
Q. Can I employ Auto Scaling within
Amazon VPC?
Yes.
Q. Can I launch Amazon EC2 Cluster
Instances in a VPC?
Yes. Cluster instances
are supported in Amazon VPC, however, not all instance types are available in
all regions and Availability Zones.
Q. What is a default VPC?
A default VPC is a
logically isolated virtual network in the AWS cloud that is automatically
created for your AWS account the first time you provision Amazon EC2 resources.
When you launch an instance without specifying a subnet-ID, your instance will
be launched in your default VPC.
Q. What are the benefits of a default
VPC?
When you launch
resources in a default VPC, you can benefit from the advanced networking
functionalities of Amazon VPC (EC2-VPC) with the ease of use of Amazon EC2
(EC2-Classic). You can enjoy features such as changing security group
membership on the fly, security group egress filtering, multiple IP addresses,
and multiple network interfaces without having to explicitly create a VPC and
launch instances in the VPC.
Q. What accounts are enabled for default
VPC?
If your AWS account
was created after March 18, 2013 your account may be able to launch resources
in a default VPC. See this Forum Announcement to determine which regions have been enabled for the default VPC feature
set. Also, accounts created prior to the listed dates may utilize default VPCs
in any default VPC enabled region in which you’ve not previously launched EC2
instances or provisioned Amazon Elastic Load Balancing, Amazon RDS, Amazon
ElastiCache, or Amazon Redshift resources.
Q. How can I tell if my account is
configured to use a default VPC?
The Amazon EC2
console indicates which platforms you can launch instances in for the selected
region, and whether you have a default VPC in that region. Verify that the
region you'll use is selected in the navigation bar. On the Amazon EC2 console
dashboard, look for "Supported Platforms" under "Account
Attributes". If there are two values, EC2-Classic and EC2-VPC, you can
launch instances into either platform. If there is one value, EC2-VPC, you can
launch instances only into EC2-VPC. Your default VPC ID will be listed under
"Account Attributes" if your account is configured to use a default
VPC. You can also use the EC2 DescribeAccountAttributes API or CLI to describe
your supported platforms.
Q. Will I need to know anything about
Amazon VPC in order to use a default VPC?
No. You can use the
AWS Management Console, AWS EC2 CLI, or the Amazon EC2 API to launch and manage
EC2 instances and other AWS resources in a default VPC. AWS will automatically
create a default VPC for you and will create a default subnet in each
Availability Zone in the AWS region. Your default VPC will be connected to an
Internet gateway and your instances will automatically receive public IP
addresses, just like EC2-Classic.
Q. What are the differences between
instances launched in EC2-Classic and EC2-VPC?
Q. Do I need to have a VPN connection to
use a default VPC?
No. Default VPCs
are attached to the Internet and all instances launched in default subnets in
the default VPC automatically receive public IP addresses. You can add a VPN
connection to your default VPC if you choose.
Q. Can I create other VPCs and use them
in addition to my default VPC?
Yes. To launch an
instance into nondefault VPCs you must specify a subnet-ID during instance
launch.
Q. Can I create additional subnets in my
default VPC, such as private subnets?
Yes. To launch into
no default subnets, you can target your launches using the console or the
--subnet option from the CLI, API, or SDK.
Q. How many default VPCs can I have?
You can have one
default VPC in each AWS region where your Supported Platforms attribute is set
to "EC2-VPC".
Q. What is the IP range of a default VPC?
The default VPC
CIDR is 172.31.0.0/16. Default subnets use /20 CIDRs within the default VPC
CIDR.
Q. How many default subnets are in a
default VPC?
One default subnet
is created for each Availability Zone in your default VPC.
Q. Can I specify which VPC is my default
VPC?
Not at this time.
Q. Can I specify which subnets are my
default subnets?
Not at this time.
Q. Can I delete a default VPC?
Yes. Contact AWS
Support if you've deleted your default VPC and want to have it reset.
Q. Can I delete a default subnet?
Yes, but once
deleted, it’s gone. Your future instance launches will be placed in your
remaining default subnet(s).
Q. I have an existing EC2-Classic
account. Can I get a default VPC?
The simplest way to
get a default VPC is to create a new account in a region that is enabled for
default VPCs, or use an existing account in a region you've never been to
before, as long as the Supported Platforms attribute for that account in that
region is set to "EC2-VPC".
Q. I really want a default VPC for my
existing EC2 account. Is that possible?
Yes, however, we
can only enable an existing account for a default VPC if you have no
EC2-Classic resources for that account in that region. Additionally, you must
terminate all non-VPC provisioned Elastic Load Balancers, Amazon RDS, Amazon
ElastiCache, and Amazon Redshift resources in that region. After your account has
been configured for a default VPC, all future resource launches, including
instances launched via Auto Scaling, will be placed in your default VPC. To
request your existing account be setup with a default VPC, contact AWS Support. We will review your request and your existing AWS services and
EC2-Classic presence to determine if you are eligible for a default VPC.
Q. How are IAM accounts impacted by
default VPC?
If your AWS account
has a default VPC, any IAM accounts associated with your AWS account use the
same default VPC as your AWS account.
Q. Can I attach or detach one or more
network interfaces to an EC2 instance while it’s running?
Yes.
Q. Can I have more than two network interfaces
attached to my EC2 instance?
The total number of
network interfaces that can be attached to an EC2 instance depends on the
instance type. See the EC2 User Guide for more information on the number of
allowed network interfaces per instance type.
Q. Can I attach a network interface in
one Availability Zone to an instance in another Availability Zone?
Network interfaces
can only be attached to instances residing in the same Availability Zone.
Q. Can I attach a network interface in
one VPC to an instance in another VPC?
Network interfaces
can only be attached to instances in the same VPC as the interface.
Q. Can I use Elastic Network Interfaces
as a way to host multiple websites requiring separate IP addresses on a single
instance?
Yes, however, this
is not a use case best suited for multiple interfaces. Instead, assign
additional private IP addresses to the instance and then associate EIPs to the
private IPs as needed.
Q. Will I get charged for an Elastic IP
Address that is associated to a network interface but the network interface
isn’t attached to a running instance?
Yes.
Q. Can I detach the primary interface
(eth0) on my EC2 instance?
No. You can attach
and detach secondary interfaces (eth1-ethn) on an EC2 instance, but you can’t
detach the eth0 interface.
Q. Can I create a peering connection to a
VPC in a different region?
No. Peering
connections are only available between VPCs in the same region.
Q. Can I peer my VPC with a VPC belonging
to another AWS account?
Yes, assuming the
owner of the other VPC accepts your peering connection request.
Q. Can I peer two VPCs with matching IP
address ranges?
No. Peered VPCs
must have non-overlapping IP ranges.
Q. How much do VPC peering connections
cost?
There is no charge
for creating VPC peering connections, however, data transfer across peering
connections is charged. See the Data Transfer section of the EC2 Pricing page for data transfer rates.
Q. Can I use AWS Direct Connect or
hardware VPN connections to access VPCs I’m peered with?
No. “Edge to Edge
routing” isn’t supported in Amazon VPC. Refer to the VPC Peering Guide for additional information.
Q. Do I need an Internet Gateway to use
peering connections?
No. VPC peering
connections do not require an Internet Gateway.
Q. Is VPC peering traffic within the
region encrypted?
No. Traffic between
instances in peered VPCs remains private and isolated – similar to how traffic
between two instances in the same VPC is private and isolated.
Q. If I delete my side of a peering
connection, will the other side still have access to my VPC?
No. Either side of
the peering connection can terminate the peering connection at any time.
Terminating a peering connection means traffic won’t flow between the two VPCs.
Q. If I peer VPC A to VPC B and I peer
VPC B to VPC C, does that mean VPCs A and C are peered?
No. Transitive
peering relationships are not supported.
Q. What if my peering connection goes
down?
AWS uses the
existing infrastructure of a VPC to create a VPC peering connection; it is
neither a gateway nor a VPN connection, and does not rely on a separate piece
of physical hardware. There is no single point of failure for communication or
a bandwidth bottleneck.
Q. Are there any bandwidth limitations
for peering connections?
Bandwidth between
instances in peered VPCs is no different than bandwidth between instances in
the same VPC. Note: A placement group can span peered VPCs; however, you will not get
full-bisection bandwidth between instances in peered VPCs. Read more aboutPlacement Groups.
Q. What is ClassicLink?
Amazon Virtual
Private Cloud (VPC) ClassicLink allows EC2 instances in the EC2-Classic
platform to communicate with instances in a VPC using private IP addresses. To
use ClassicLink, enable it for a VPC in your account, and associate a Security
Group from that VPC with an instance in EC2-Classic. All the rules of your VPC
Security Group will apply to communications between instances in EC2-Classic
and instances in the VPC.
Q. What does ClassicLink cost?
There is no
additional charge for using ClassicLink; however, existing cross Availability
Zone data transfer charges will apply. For more information, consult the EC2 pricing page.
Q. How do I use ClassicLink?
In order to use
ClassicLink, you first need to enable at least one VPC in your account for
ClassicLink. Then you associate a Security Group from the VPC with the desired
EC2-Classic instance. The EC2-Classic instance is now linked to the VPC and is
a member of the selected Security Group in the VPC. Your EC2-Classic instance
cannot be linked to more than one VPC at the same time.
Q. Does the EC2-Classic instance become a
member of the VPC?
The EC2-Classic
instance does not become a member of the VPC. It becomes a member of the VPC
Security Group that was associated with the instance. All the rules and
references to the VPC Security Group apply to communication between instances
in EC2-Classic instance and resources within the VPC.
Q. Can I use EC2 public DNS hostnames
from my EC2-Classic and EC2-VPC instances to address each other, in order to
communicate using private IP?
No. The EC2 public
DNS hostname will not resolve to the private IP address of the EC2-VPC instance
when queried from an EC2-Classic instance, and vice-versa.
Q. Are there any VPCs for which I cannot
enable ClassicLink?
Yes. ClassicLink
cannot be enabled for a VPC that has a Classless Inter-Domain Routing (CIDR)
that is within the 10.0.0.0/8 range, with the exception of 10.0.0.0/16 and
10.1.0.0/16. In addition, ClassicLink cannot be enabled for any VPC that
has a route table entry pointing to the 10.0.0.0/8 CIDR space to a target other
than "local".
Q. Can traffic from an EC2-Classic
instance travel through the Amazon VPC and egress through the Internet gateway,
virtual private gateway, or to peered VPCs?
Traffic from an
EC2-Classic instance can only be routed to private IP addresses within the VPC.
They will not be routed to any destinations outside the VPC, including Internet
gateway, virtual private gateway, or peered VPC destinations.
Q. Does ClassicLink affect the access
control between the EC2-Classic instance, and other instances that are in the
EC2-Classic platform?
ClassicLink does
not change the access control defined for an EC2-Classic instance through its
existing Security Groups from the EC2-Classic platform.
Q. Will ClassicLink settings on my
EC2-Classic instance persist through stop/start cycles?
The ClassicLink connection will not persist through stop/start cycles of
the EC2-Classic instance. The EC2-Classic instance will need to be linked back
to a VPC after it is stopped and started. However, the ClassicLink connection
will persist through instance reboot cycles.
Q. Will my EC2-Classic instance be
assigned a new, private IP address after I enable ClassicLink?
There is no new
private IP address assigned to the EC2-Classic instance. When you enable
ClassicLink on an EC2-Classic instance, the instance retains and uses its
existing private IP address to communication with resources in a VPC.
Q: Does Classic Link allow EC2-Classic
Security Group rules to reference VPC Security Groups, or vice versa?
Classic Link does
not allow EC2-Classic Security Group rules to reference VPC Security Groups, or
vice versa.
Q. Can I use the AWS Management Console
to control and manage Amazon VPC?
Yes. You can use
the AWS Management Console to manage Amazon VPC objects such as VPCs, subnets,
route tables, Internet gateways, and IPSec VPN connections. Additionally, you
can use a simple wizard to create a VPC.
Q. How many VPCs, subnets, Elastic IP
addresses, Internet gateways, customer gateways, virtual private gateways, and
VPN connections can I create?
You can have:
·
Five Amazon VPCs per AWS account per
region
·
Two hundred subnets per Amazon VPC
·
Five Amazon VPC Elastic IP addresses
per AWS account per region
·
One Internet gateway per VPC
·
Five virtual private gateways per AWS
account per region
·
Fifty customer gateways per AWS
account per region
·
Ten IPsec VPN Connections per virtual
private gateway
Q. Does the Amazon VPC VPN Connection
have a Service Level Agreement (SLA)?
Not currently.
Q. Can I obtain AWS Support with Amazon
VPC?
Elastic Fox is no
longer officially supported for managing your Amazon VPC. Amazon VPC support is
available via the AWS APIs, command line tools, and the AWS Management Console,
as well as a variety of third-party utilities.
No comments:
Post a Comment
